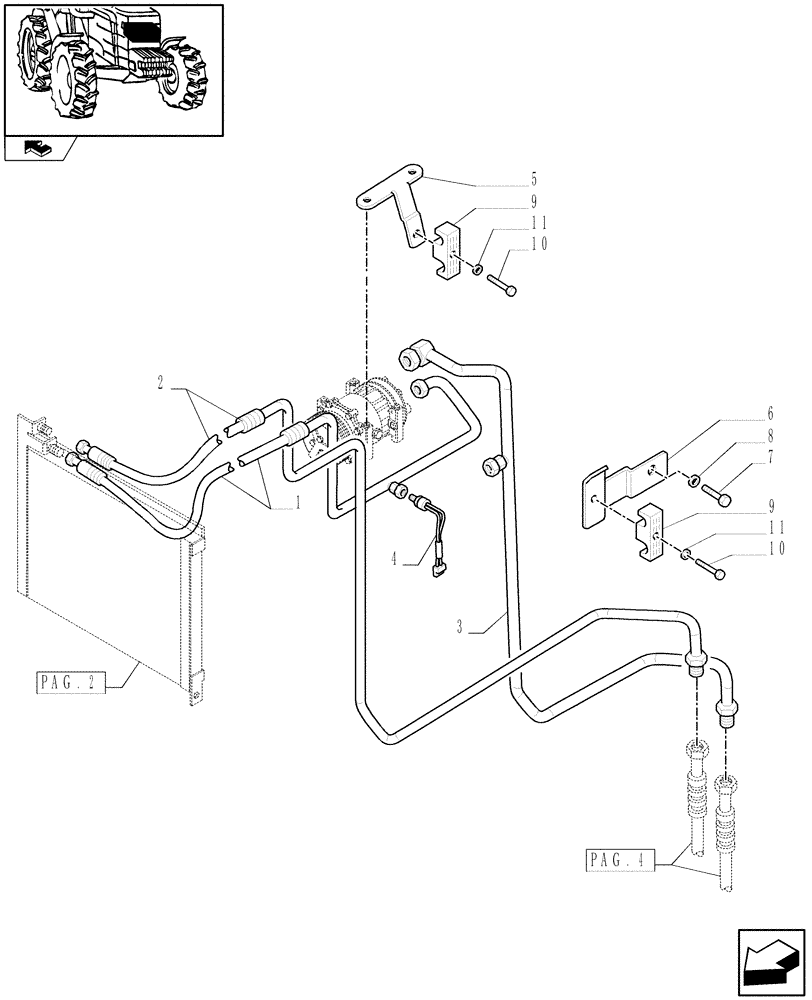

Запчасти Case IH FARMALL 95C (0.88.0[03]) - AIR CONDITIONING UNIT - FILTER AND PIPES (VAR.330638-330641) (01) - ENGINE

1

87675640

RIGID TUBE,12 mm OD

1шт.

2

87675639

RIGID TUBE,10 mm OD

1шт.

3

87675638

TUBE

1шт.

4

87663969

PRESSURE SWITCH

1шт.

5

87684433

BRACKET

1шт.

6

87573511

RETAINER COLLAR

1шт.

7

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

8

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

9

87571081

BRACKET

2шт.

10

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

11

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.
