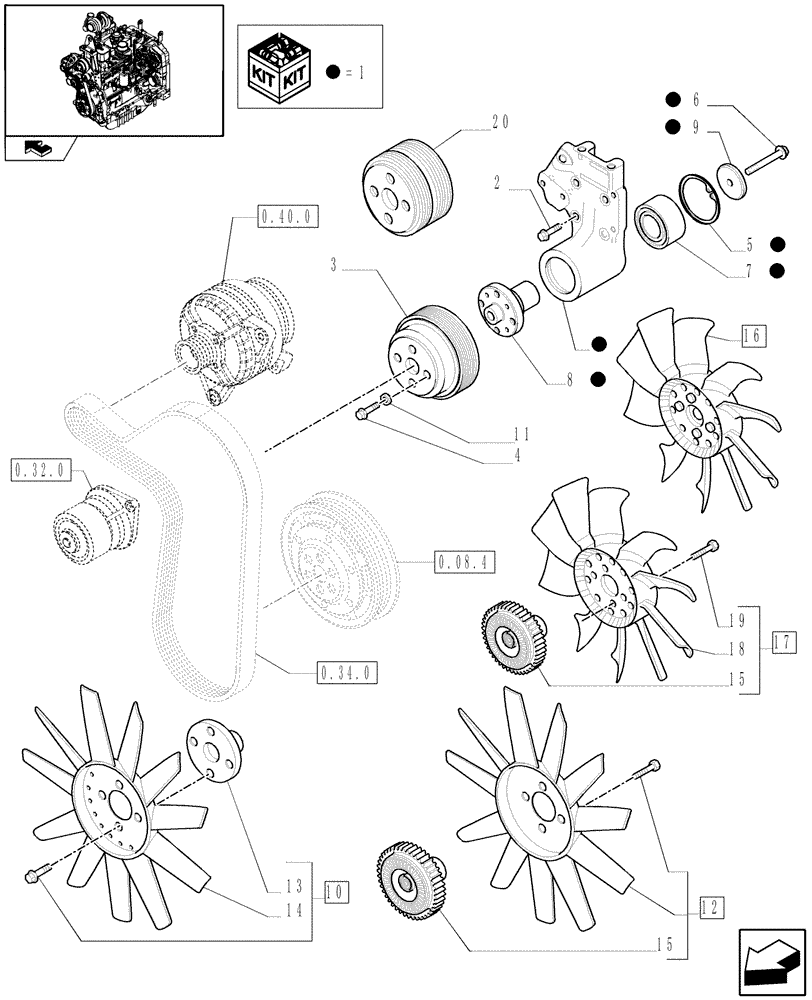

Запчасти Case IH FARMALL 95C (0.34.5) - FAN DRIVE (01) - ENGINE

1

2854422

HUB

ASSY

1шт.

2

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

4шт.

3

87519548

PULLEY,132mm OD

1шт.

4

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

5

2852171

SNAP RING,M68.2, Ext

1шт.

6

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

M10 x 1.5 x 70

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

2853705

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

10

5198172

FAN

ASSY. L/Cab

1шт.

11

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

12

47135806

FAN,11 Blades, 450mm OD

ASSY, L/Cab

1шт.

Fan with VISCO, VAR. 330009

1шт.

13

47134026

ADAPTER

1шт.

14

5182401

BLOWER

1шт.

15

47135805

DRIVE,Cooling Fan Viscous

1шт.

16

87542809

FAN,10 Blades, 450mm OD

ASSY, W/Cab

1шт.

17

87623308

FAN

ASSY, W/Cab

1шт.

Fan with VISCO, VAR. 330009

1шт.

18

87624549

FAN

1шт.

19

43231

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

20

87519554

PULLEY,122mm OD

VAR. 330009

1шт.
