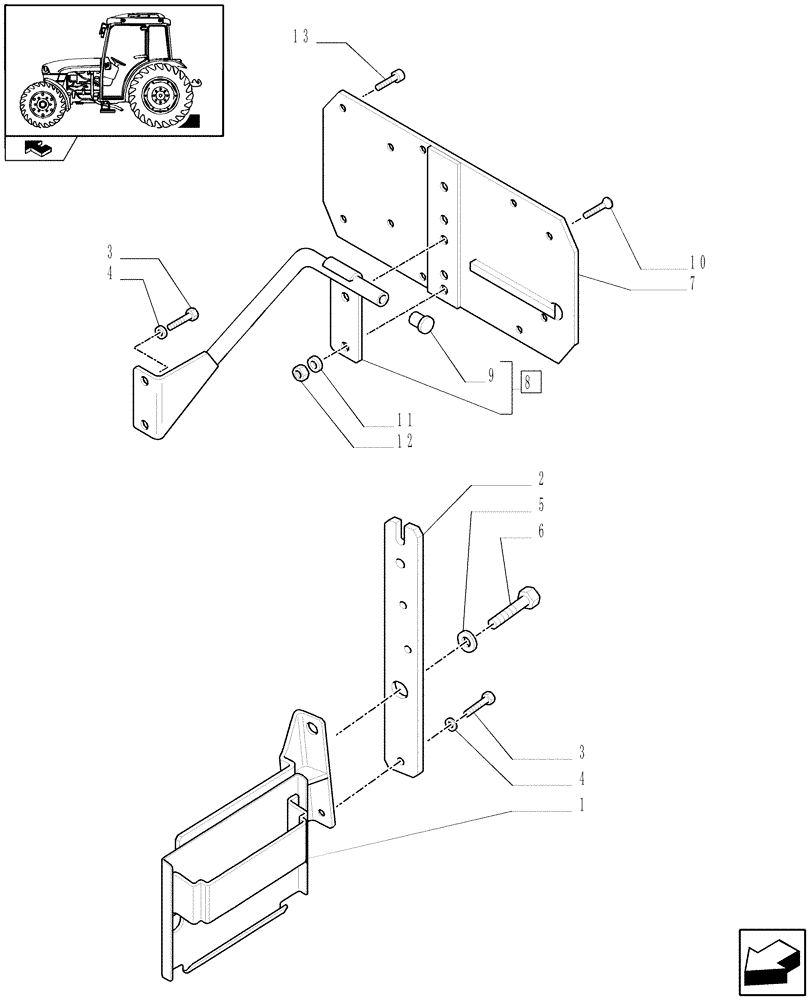

Запчасти Case IH FARMALL 95C (1.99.1) - LICENCE PLATE SIDE FENDER MOUNTED FOR RH DRIVE MARKETS AND WEDGE - WEDGE SUPPORT (VAR.334958) (10) - OPERATORS PLATFORM/CAB

1

87351163

SUPPORT

1шт.

2

87351291

BRACKET

LH Bracket

1шт.

3

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

4

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

3шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

6

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

1шт.

7

47133045

PLATE

1шт.

8

47133036

SUPPORT

1шт.

9

5176369

PLUG,21.2mm OD

1шт.

10

14441421

SCREW,Flat Csk Hd, M6 x 20mm, Cl 8.8

2шт.

11

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

12

12574215

NUT,M6 x 1, Cl 8

1шт.

13

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
