Запчасти Case IH FARMALL 95C (1.92.99) - LICENCE PLATE SIDE FENDER MOUNTED FOR RH DRIVE MARKETS - SUPPORT (VAR.332958) (10) - OPERATORS PLATFORM/CAB

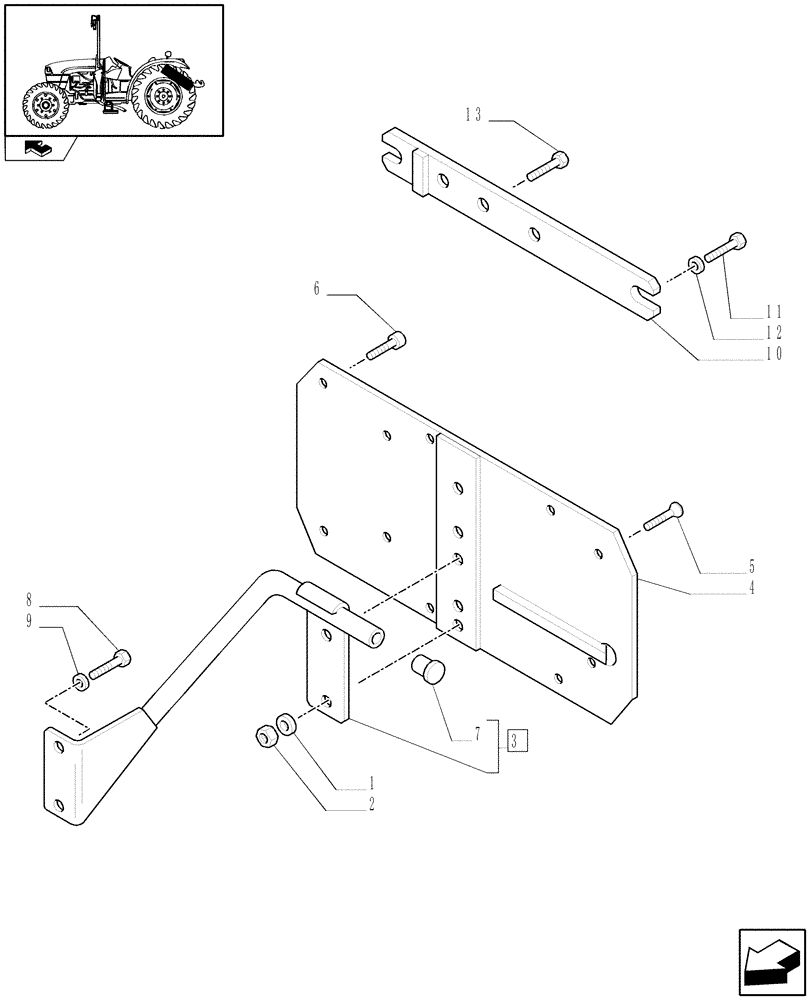

Схема запчастей Case IH FARMALL 95C - (1.92.99) - LICENCE PLATE SIDE FENDER MOUNTED FOR RH DRIVE MARKETS - SUPPORT (VAR.332958) (10) - OPERATORS PLATFORM/CAB
7
6
2
11
13
home
8
9
3
12
1
5
4
10

Артикул

Название

Примечание

Количество

1

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

2

12574215

NUT,M6 x 1, Cl 8

1шт.

3

47132909

SUPPORT

L/CAB

1шт.

3

47133036

SUPPORT

W/CAB

1шт.

4

47133045

PLATE

1шт.

5

14441421

SCREW,Flat Csk Hd, M6 x 20mm, Cl 8.8

2шт.

6

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

7

5176369

PLUG,21.2mm OD

L/CAB

1шт.

8

16043430

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

W/Cab

2шт.

8

16043637

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

L/CAB

2шт.

9

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

10

47133034

BRACKET

LH, W/CAB

1шт.

11

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

13

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

W/CAB

2шт.

Выбрано товаров: 15
