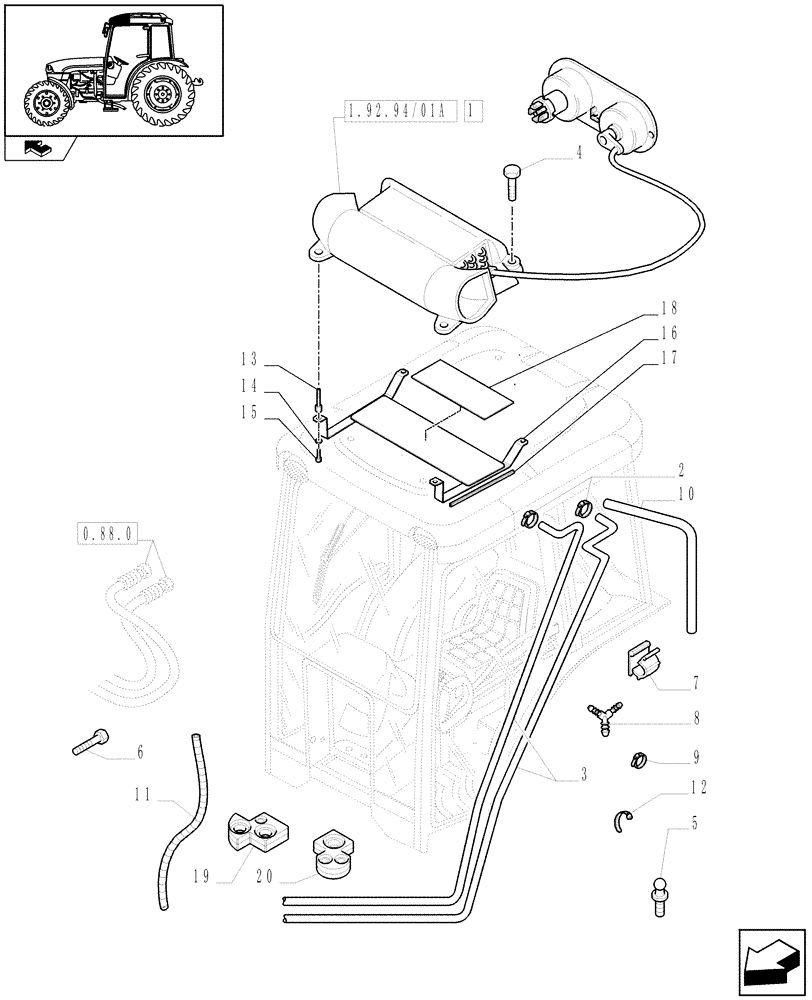

Запчасти Case IH FARMALL 95C (1.92.94/01) - AIR CONDITIONING UNIT - CONDITIONER (VAR.330638-332638-333638-330641) (10) - OPERATORS PLATFORM/CAB

1

87748358

AIR CONDITIONER

ASSY

1шт.

Air Conditioning, VAR.330641-332638

1шт.

1

87748359

AIR CONDITIONER

1шт.

Air Conditioning and Antipollin Filters, VAR.330638-333638

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

2шт.

3

87484980

HEATER HOSE,13.97 mm ID x 3600.00 mm

Return

1шт.

3

87484979

HEATER HOSE,13.97 mm ID x 3600.00 mm

Delivery

1шт.

4

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

5

15152011

BALL STUD

BALL PIN

1шт.

6

13278214

SCREW,M6 x 18mm

M6x18

10шт.

6

18770114

SCREW

M6x16

4шт.

7

5182865

CLIP

Drain

2шт.

8

5186511

HYD CONNECTOR

Drain

2шт.

9

13423577

HOSE CLAMP,16.5mm - 18.3mm

D=16-18

2шт.

9

10186890

HOSE CLAMP,M14-16, Worm

2шт.

10

82849357

HOSE,10mm ID x 5000mm L

5000MM

4шт.

11

5186461

TUBE

Wrinkled. 300mm L

1шт.

12

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

13

84287796

SPACER

, Start Serial: D6507

4шт.

14

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

, Start Serial: D6507

4шт.

15

14306231

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd

, Start Serial: D6507

4шт.

16

84287795

GUARD

, Start Serial: D6507

1шт.

17

5150787

, Start Serial: D6507

2шт.

18

84291139

RUBBER SEAL

, Start Serial: D6507

1шт.

19

84278954

COVER

RH, Start Serial: D6626

1шт.

20

84278955

COVER

LH, Start Serial: D6626

1шт.
