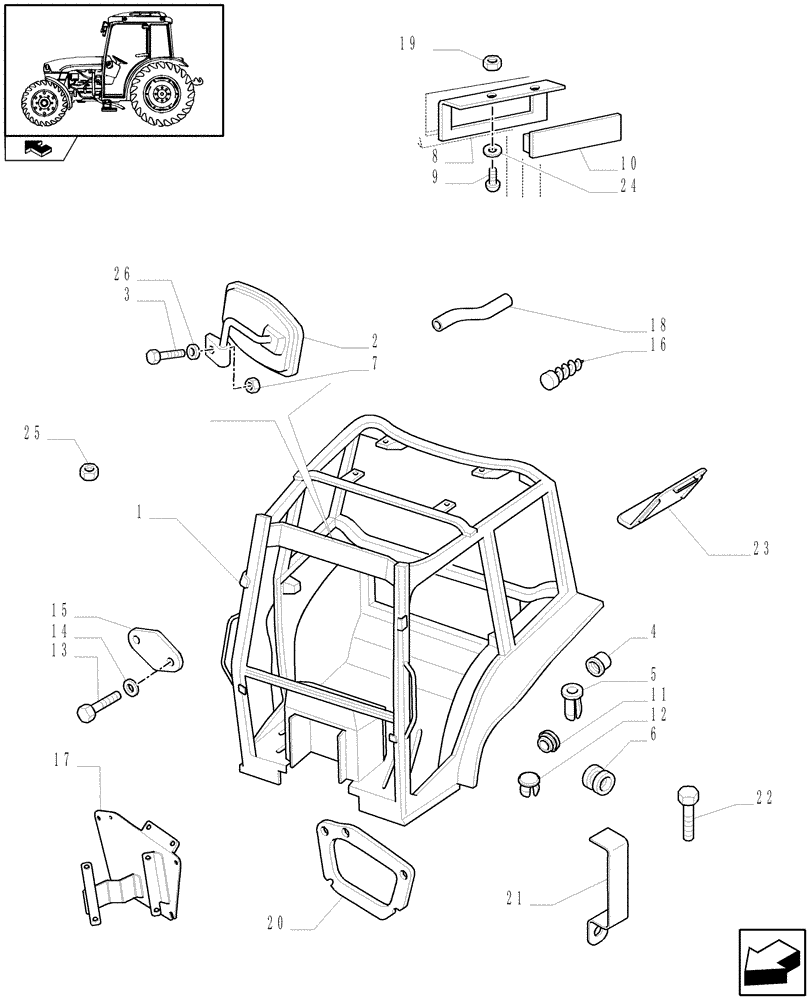

Запчасти Case IH FARMALL 95C (1.92.90) - CAB FRAME (10) - OPERATORS PLATFORM/CAB

1

87396533

CAB FRAME

, Serial Range: -C5956

1шт.

1

87476157

FRAME

, Start Serial: D5956

1шт.

1

87395811

CAB FRAME

, Serial Range: -C5956

1шт.

Cab for Opening Windshield, VAR.330606

1шт.

1

87476139

FRAME

, Start Serial: D5956

1шт.

Cab for Opening Windshield, VAR.330606

1шт.

1

87559595

CAB FRAME

, Serial Range: -C5956

1шт.

Cab for Fixed Windshield for A-Pillar Exhaust, VAR.330617

1шт.

1

87476164

FRAME

, Start Serial: D5956

1шт.

Cab for Fixed Windshield for A-Pillar Exhaust, VAR.330617

1шт.

3

11500424

STUD

1шт.

1

87559590

CAB FRAME

, Serial Range: -C5956

1шт.

Cab for Opening Windshield for A-Pillar Exhaust, VAR.331616

1шт.

4

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

D=14

2шт.

1

87476161

FRAME

, Start Serial: D5956

1шт.

Cab for Opening Windshield for A-Pillar Exhaust, VAR.331616

1шт.

5

14115781

GROMMET

D=5

4шт.

2

87665407

REAR VIEW MIRROR

Internal

1шт.

Cab Internal Mirror, VAR.330881

1шт.

6

10403380

RING,10mm ID x 22mm OD x 12mm Thk

10x2.5

2шт.

7

14042277

NUT,M6

2шт.

8

82010542

BRACKET

1шт.

9

87304169

SCREW,M6 x 16mm, Cl 5.8, BGM

M6x16

2шт.

10

82008353

PLATE

1шт.

11

5108455

PLUG

D=15

1шт.

11

5155362

PLUG,17mm

D=17

2шт.

11

5108456

PLUG

D=10, THK.2

4шт.

11

14508287

PLUG,50mm, Black

D=50

3шт.

11

5120596

PLUG,18mm

D=18, THK.3

1шт.

11

5198909

PLUG

D=25.5

2шт.

11

5115440

PLUG,38.5mm

D=38.5

2шт.

12

5112608

PLUG,9mm, Black

D=9

13шт.

13

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

2шт.

14

10516474

LOCK WASHER

D=6

2шт.

15

5191269

COVER PLATE

1шт.

16

83994150

PLUG,4.5-5.7mm OD

2шт.

16

14592587

BUTTON,Button, M6.50 x 3.50mm

6.5x3.5

4шт.

16

14122719

STUD,5 x 9mm

5x9

23шт.

17

87396175

LOCKING TAB

1шт.

18

47133319

FLEXIBLE SHEATH

4шт.

19

12574221

NUT,M6 x 1, Cl 10

2шт.

20

47133700

BRACKET

3шт.

21

47133678

BRACKET

2шт.

22

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

6шт.

22

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

22

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

M5x30

2шт.

23

5186509

PLUG

1шт.

24

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

25

86625075

NUT,M4 x 0.7, Cl 8

2шт.

26

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.
