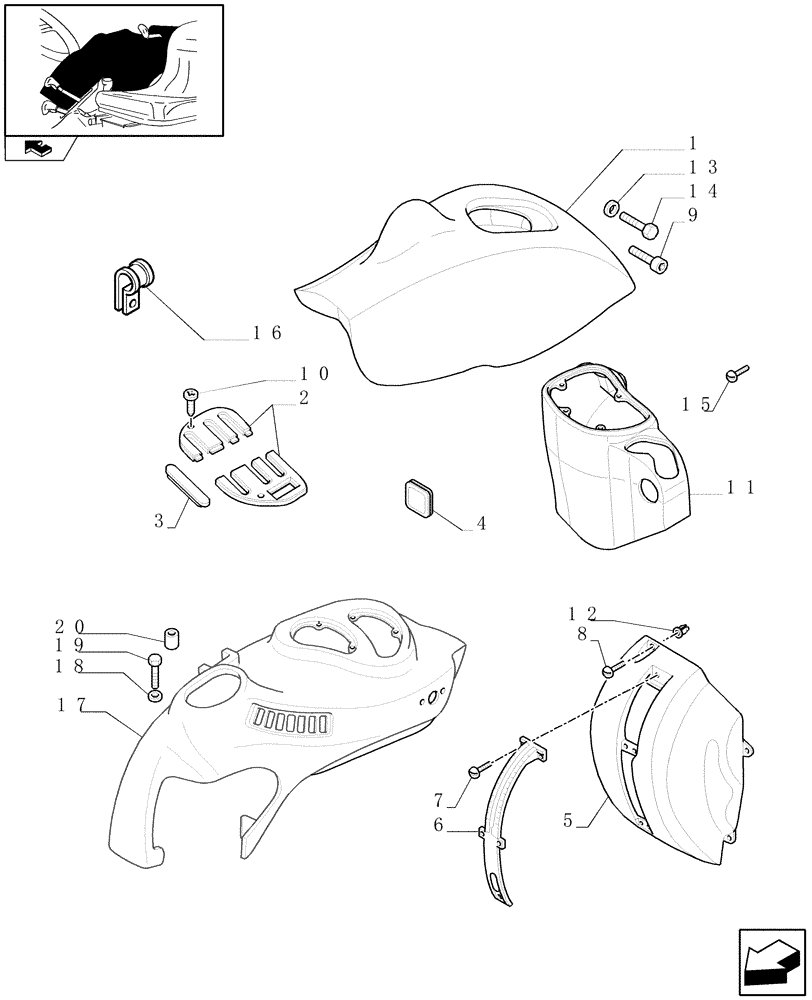

Запчасти Case IH FARMALL 95C (1.92.88[02]) - COVERINGS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5177750

PADDING

1шт.

2

5186621

COVER

1шт.

3

5182030

PLUG

122MM

1шт.

3

5181959

PLUG

153MM

1шт.

4

82004989

PLUG

1шт.

5

5180576

PADDING

1шт.

6

5180577

BEZEL

1шт.

7

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

5шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

M5x16

4шт.

9

14305024

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

1шт.

10

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

11

47123502

PADDING

Black

1шт.

12

14115780

BLOCK

4шт.

13

11194874

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.6mm Thk

2шт.

14

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

15

15917307

SELF-TAP SCREW,Cross Flat Hd, M4.2 x 32

3шт.

16

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

17

87623613

COVER

1шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

18

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

19

14780711

SCREW,Cross Rec Cheese Hd, M8 x 35mm, Cl 5.8

4шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.

20

87726554

SPACER

4шт.

Front HPL and PTO Axle Mounted, VAR.330848,331848,332848,333848

1шт.
