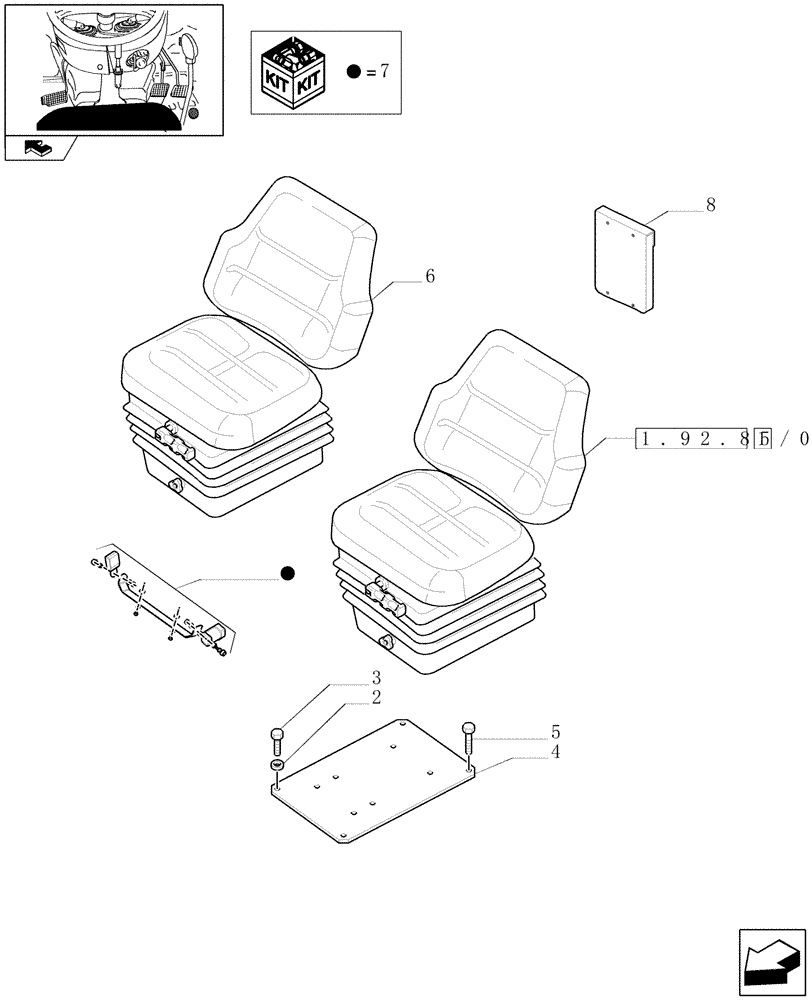

Запчасти Case IH FARMALL 95C (1.92.85/07) - FABRIC SEAT WITH RETRACTABLE BELTS AND SAFETY SWITCH - W/CAB (VAR.330963) (10) - OPERATORS PLATFORM/CAB

1

87596459

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

Fabric Case

1шт.

1

87730593

DRIVER SEAT

ASSY, Serial Range: D5798-C6330

1шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

2

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8x16x1.9

4шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8x1.25x22

4шт.

4

5180356

PLATE

1шт.

5

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

84164863

DRIVER SEAT

ASSY, Start Serial: D6330

14шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

7

47135573

KIT

, Start Serial: D6330

1шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

8

84281650

BRIEF CASE

, Start Serial: D6510

1шт.
