(1.92.85[02]) - SEAT - W/CAB

Запчасти Case IH FARMALL 95C (1.92.85[02]) - SEAT - W/CAB (10) - OPERATORS PLATFORM/CAB

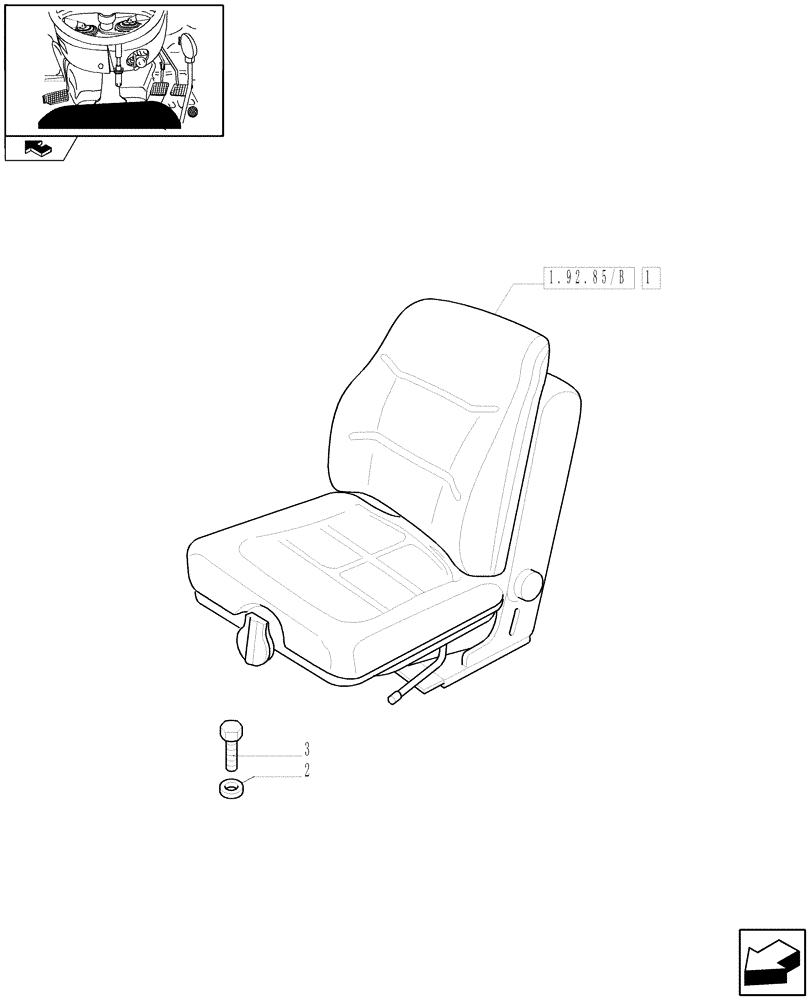

Схема запчастей Case IH FARMALL 95C - (1.92.85[02]) - SEAT - W/CAB (10) - OPERATORS PLATFORM/CAB
home
1.92.85/b
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87646047

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

Wheat Leather

1шт.

1

87731012

DRIVER SEAT

ASSY, Start Serial: D5798

1шт.

Wheat Leather with Increased Seat Back and Cushion

1шт.

2

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8x16x1.9

4шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8x1.25x22

4шт.
