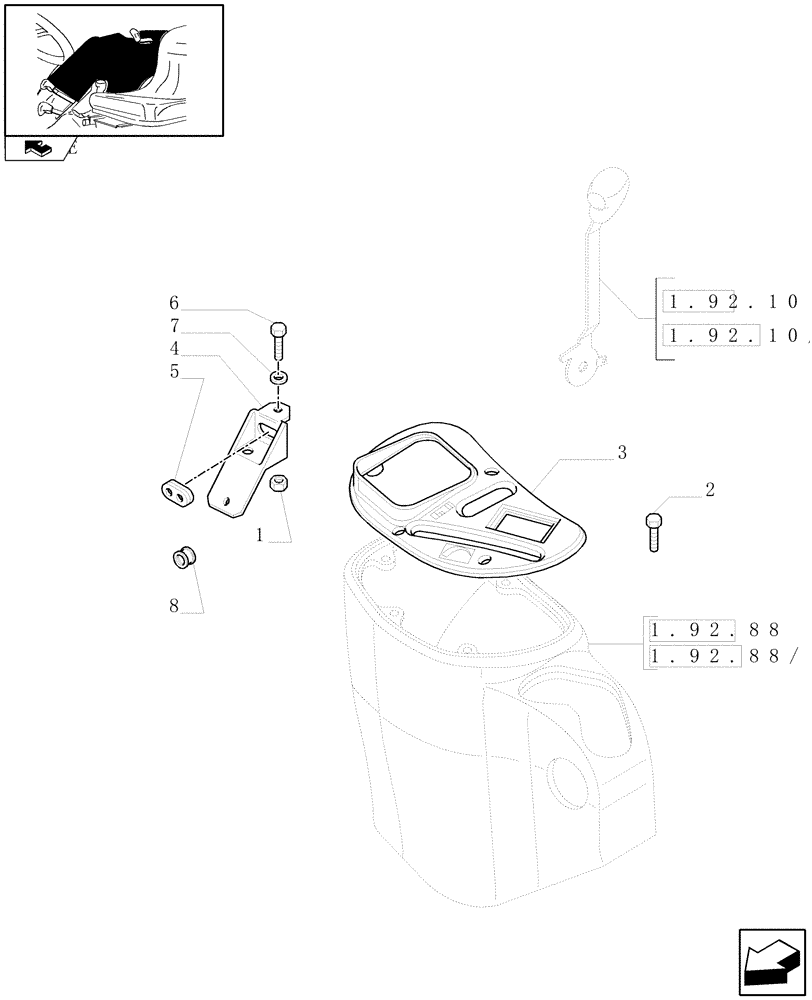

Запчасти Case IH FARMALL 95C (1.92.82/11[02]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - COVERING (VAR.330124-331124-332124-330125-331125-332125-334125-335125) (10) - OPERATORS PLATFORM/CAB

1

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

2

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

3

5177551

COVER

1шт.

4

5185186

BRACKET

1шт.

5

5185278

INSULATING RING

1шт.

6

13279177

SCREW,Pozidriv Pan Hd, M8 x 14mm

M8x14

1шт.

6

13279277

SCREW,Pozidriv Pan Hd, M8 x 16mm, Full Thd

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

6

16045024

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

13578478

WASHER,8.15mm ID x 36mm OD x 2.5mm Thk

1шт.

7

12646778

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

14x2.5

1шт.
