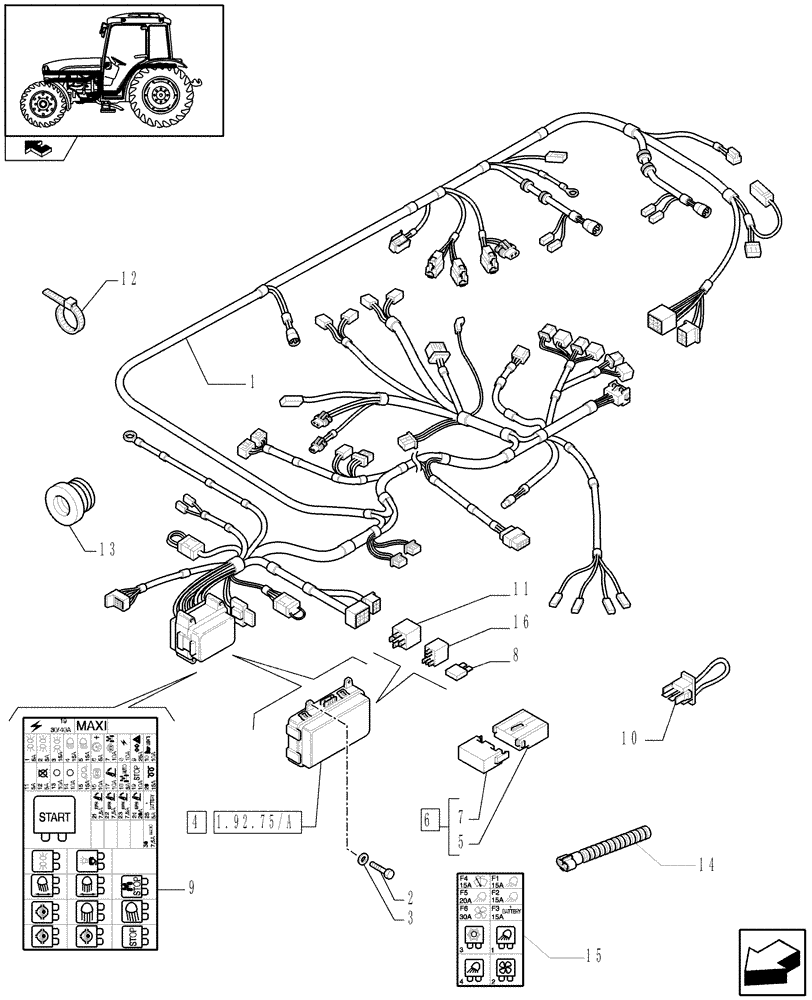

Запчасти Case IH FARMALL 95C (1.92.75/03) - 4WD ELECTROHYDRAULIC COUPLING FOR EDC - ELECTRIC CONTROLS - W/CAB (VAR.331307-334307) (10) - OPERATORS PLATFORM/CAB

1

87362077

CABLE

, Serial Range: -C6502

1шт.

Main Harness

1шт.

1

84283323

ELECTRIC CABLE

, Start Serial: D6502

1шт.

Main Harness

1шт.

2

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

3

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5198692

FUSE HOLDER

1шт.

5

5173266

FUSE HOLDER

1шт.

6

5176999

COVER

1шт.

7

5173265

COVER

1шт.

8

10395890

FUSE,5A, Mini, Beige

5A

1шт.

8

87522597

FUSE,10A, Mini, Red

10A

1шт.

8

87524877

FUSE,15A, Mini, Blue

15A

1шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

8

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

9

47129932

DECAL

Fuse

1шт.

10

5189713

JUMPER

C18

1шт.

11

83989947

RELAY,70A

70A

1шт.

12

85805383

CABLE TIE

CABLE STRAP

28шт.

13

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

14

47127781

RELAY,12V, 20A, Micro, N.O.

20A

1шт.

14

82023238

RELAY,12V, 20A

15/25A

1шт.
