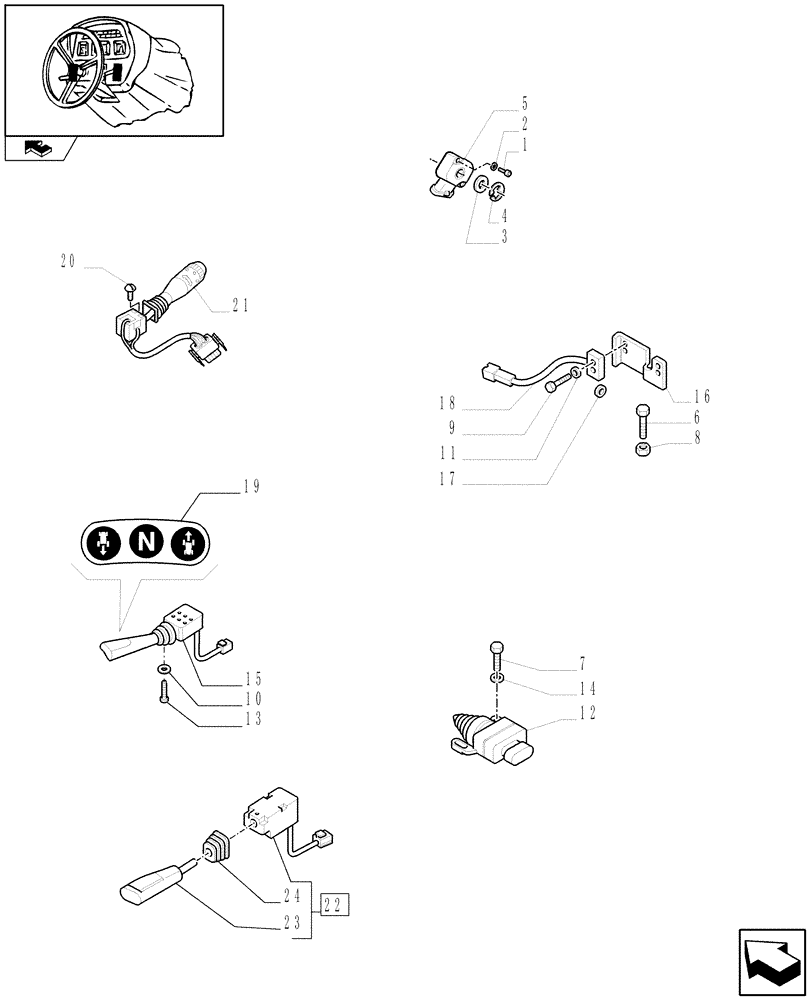

Запчасти Case IH FARMALL 95C (1.92.74/02) - TILTABLE AND TELESCOPIC STEERING COLUMN FOR HYDR. TRANSM. - ELECTRIC CONTROLS (VAR.331644-337644) (10) - OPERATORS PLATFORM/CAB

1

14358724

HEX SOC SCREW,M5 x 35mm, Cl 8.8, Full Thd

2шт.

2

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

3

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

4

87016950

SNAP RING,M7, Ext

1шт.

5

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

6

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

1шт.

7

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

8

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

9

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

9

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

2шт.

10

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

11

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

12

47137022

SWITCH

1шт.

13

14418924

SCREW,M4 x 8mm, Cl 8.8, Full Thd

3шт.

14

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

15

87665804

CONTROL LEVER

, Serial Range: -C6840

1шт.

Shuttle Lever

1шт.

16

87552777

BRACKET

1шт.

17

87566484

MAGNET

1шт.

18

87539616

HAND BRAKE

Hand Brake, L/CAB

1шт.

18

87743459

BELT

Hand Brake, W/CAB, L=400MM

1шт.

19

87364176

DECAL

1шт.

20

15902801

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

3шт.

21

87648947

LIGHT SWITCH

L/CAB

1шт.

Lights Control

1шт.

21

87577943

LIGHT SWITCH

W/CAB

1шт.

Lights Control

1шт.

22

84324102

CONTROL LEVER

ASSY, Start Serial: D6840

1шт.

Shuttle Lever

1шт.

23

84324104

LEVER

, Start Serial: D6840

1шт.

24

84324105

BOOT

, Start Serial: D6840

1шт.
