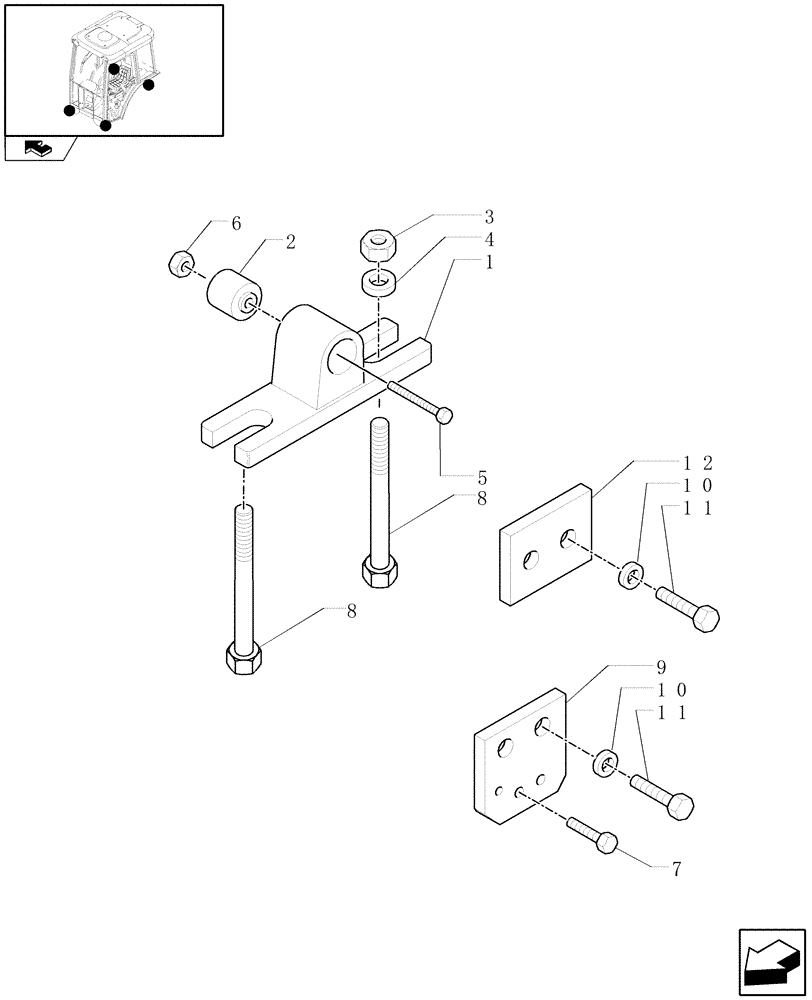

Запчасти Case IH FARMALL 95C (1.87.0[02]) - CAB SUPPORTS (08) - SHEET METAL

1

5175933

BRACKET

Rear

2шт.

2

5177337

RUBBER BUSHING,50mm ID x 64mm OD x 52mm L

2шт.

3

12164224

NUT,M18 x 1.5, Cl 10

4шт.

4

5180982

WASHER

D=18

4шт.

5

15877031

BOLT,Hex, M14 x 1.5 x 110mm, Cl 10.9

2шт.

6

13598221

NUT,M14 x 1.5

2шт.

7

13798521

SET SCREW,Hex Skt, M8 x 8mm, Cone Pt

2шт.

8

15995934

BOLT,Hex, M18 x 1.5 x 230mm, Cl 10.9

4шт.

9

87309768

SPACER

1шт.

10

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20x38x5.2

8шт.

11

11124937

BOLT,Hex, M20 x 60, 10.9, Full Thd

8шт.

12

5183186

SPACER

2шт.
