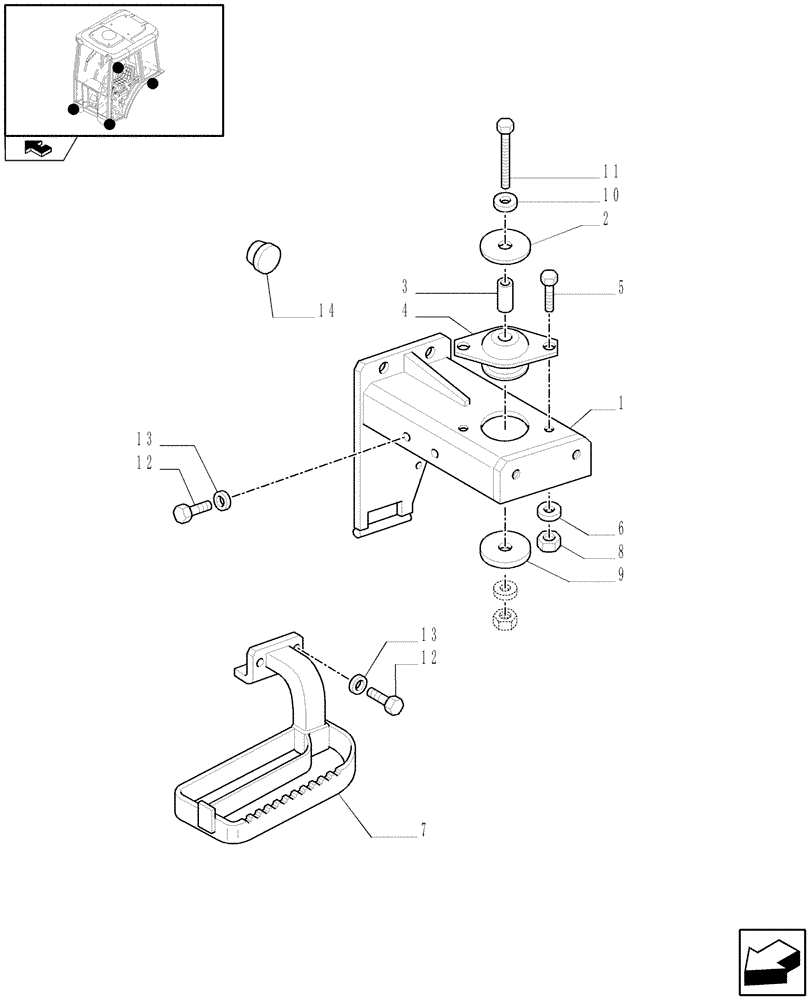

Запчасти Case IH FARMALL 95C (1.87.0[01]) - CAB SUPPORTS (08) - SHEET METAL

1

5175544

SUPPORT

RH, Front

1шт.

1

5176157

SUPPORT

LH, Front

1шт.

2

5132013

RING

2шт.

3

5132014

SPACER,17mm ID x 24mm OD x 57mm L

17x24x57, Serial Range: -C5993

2шт.

3

5137163

SPACER,17mm ID x 24mm OD x 60mm L

17x24x60, Start Serial: D5993

2шт.

4

5132016

ISOLATOR

2шт.

5

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

6

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

7

5176247

FOOTREST

LH

1шт.

7

5176251

FOOTREST

RH

1шт.

8

16101511

NUT,M12 x 1.25, Cl 8

4шт.

9

5132012

RING

2шт.

10

11200274

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

16x34,4.4

2шт.

11

11369624

BOLT,Hex, M16 x 1.5 x 110, 8.8

2шт.

12

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

14

14507687

PLUG,20mm ID

D=20

1шт.
