Запчасти Case IH FARMALL 95C (1.82.7/16) - QUICK COUPLERS FOR REAR REMOTE (VAR.330724-331724-330731-330732) (07) - HYDRAULIC SYSTEM

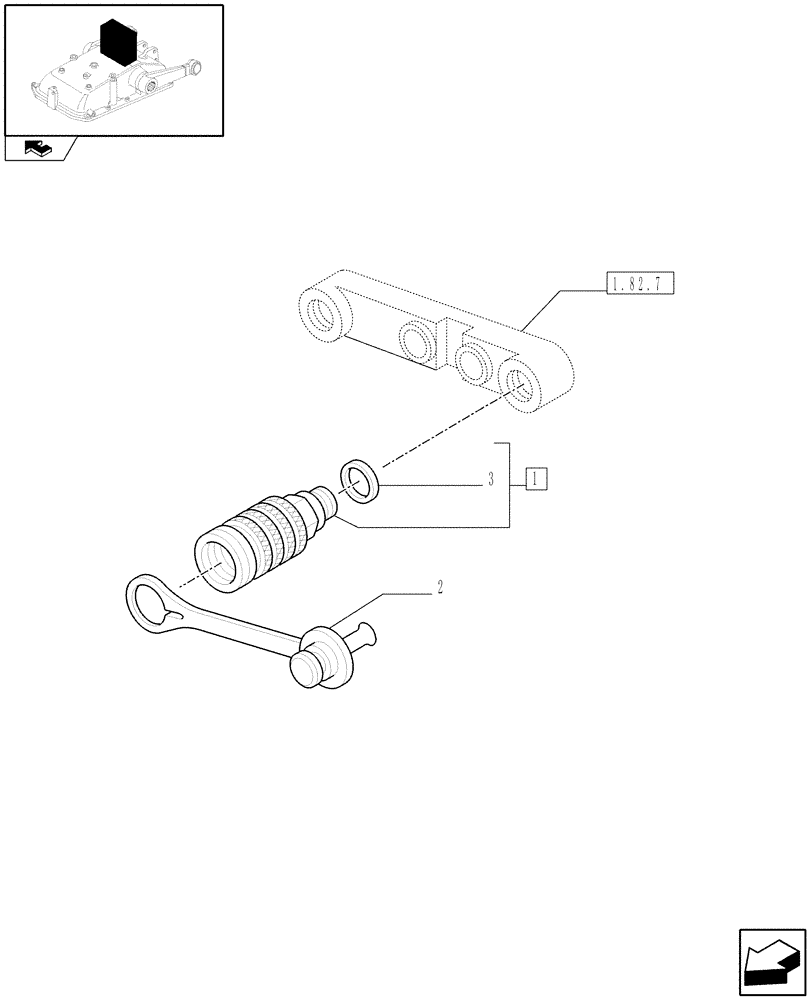

Схема запчастей Case IH FARMALL 95C - (1.82.7/16) - QUICK COUPLERS FOR REAR REMOTE (VAR.330724-331724-330731-330732) (07) - HYDRAULIC SYSTEM
1
3
1.82.7
2
home

Артикул

Название

Примечание

Количество

1

5179557

COUPLING, QUICK, FEM

M22x1.5, include p/n 1534623C1

1шт.

1534623C1

SEAL KIT

1шт.

1

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

M18x1.5, include p/n 1534623C1

8шт.

Twelve couplers for Diverter, VAR.331724

1шт.

1534623C1

SEAL KIT

1шт.

2

5186723

DUST CAP,24mm, Black

Black

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

Выбрано товаров: 7
