(1.82.7/15[05]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - PIPES (VAR.330124-332124-330125-332125-334125-335125)

Запчасти Case IH FARMALL 95C (1.82.7/15[05]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - PIPES (VAR.330124-332124-330125-332125-334125-335125) (07) - HYDRAULIC SYSTEM

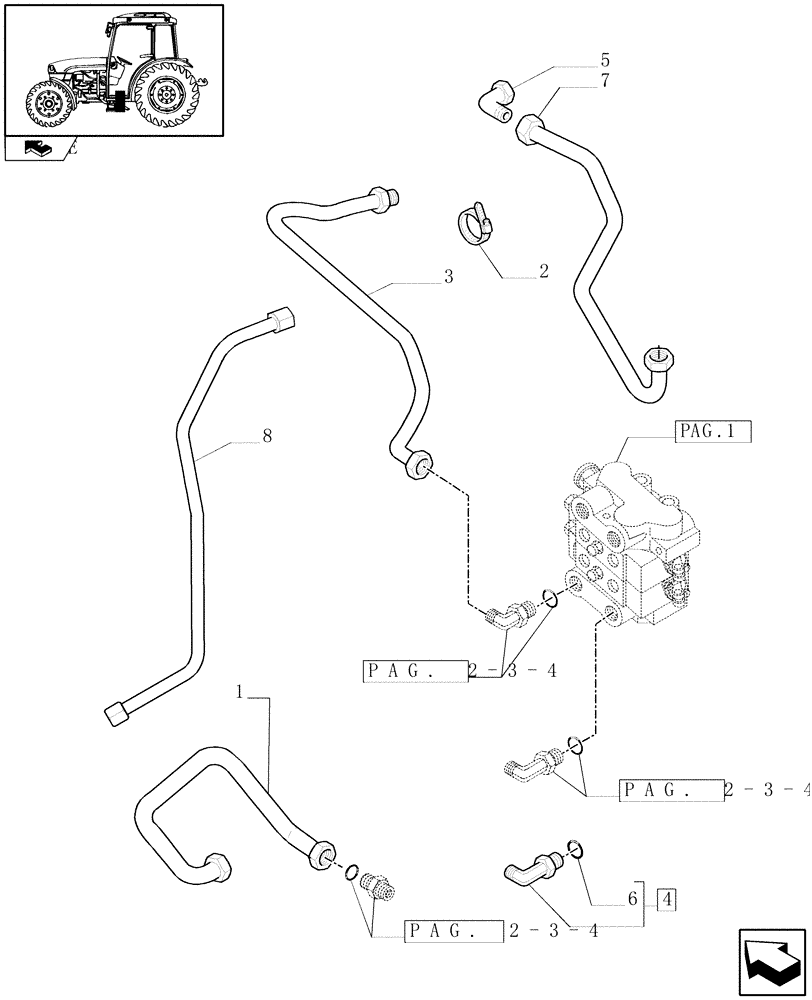

Схема запчастей Case IH FARMALL 95C - (1.82.7/15[05]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - PIPES (VAR.330124-332124-330125-332125-334125-335125) (07) - HYDRAULIC SYSTEM
1
4
8
a
.
3
pag. 2-3-4
p
2
pag. 2-3-4
6
1
g
7
home
5
pag. 2-3-4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87312681

RIGID TUBE

1шт.

2 Mid-Mount with Joystick and 2 Quick Couplers for Mechanical FHPL, VAR.334125

1шт.

2

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

3

47126969

RIGID TUBE

1шт.

4

5155452

ELBOW

1шт.

5

47128974

HYD CONNECTOR

1шт.

2 Mid-Mount with Joystick for Hydraulic Trailer Brake, VAR.332124-332125-335125

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

87312679

RIGID TUBE

1шт.

2 Mid-Mount with Joystick for Hydraulic Trailer Brake, VAR.332124-332125-335125

1шт.

8

87351005

RIGID TUBE

1шт.
