Запчасти Case IH FARMALL 95C (1.82.7/15[04]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK AND 2 QUICK COUPLERS - QUICK COUPLING (VAR.334125-335125) (07) - HYDRAULIC SYSTEM

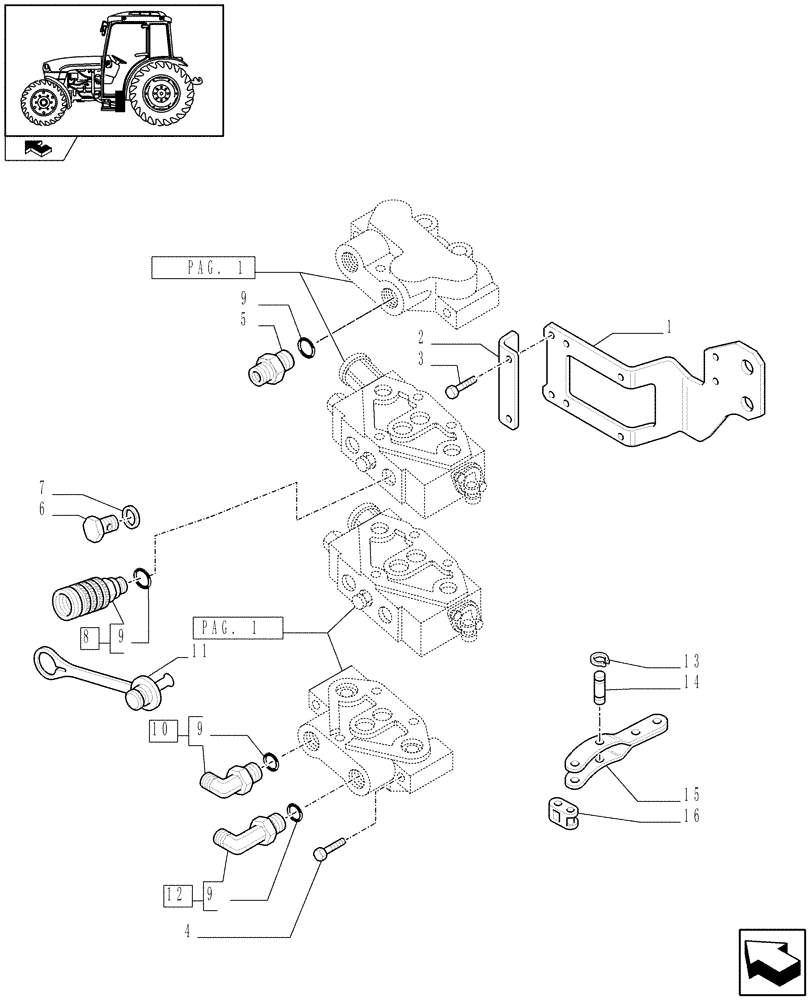

Схема запчастей Case IH FARMALL 95C - (1.82.7/15[04]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK AND 2 QUICK COUPLERS - QUICK COUPLING (VAR.334125-335125) (07) - HYDRAULIC SYSTEM
9
10
1
2
3
11
4
14
13
9
pag. 1
home
pag. 1
12
7
16
15
9
5
6
8
9

Артикул

Название

Примечание

Количество

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.

6

10300840

PLUG

M18x1.5

2шт.

7

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

8

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

10

5148919

ELBOW

M22x1.5

1шт.

10

87616375

HYD CONNECTOR

1шт.

11

5186723

DUST CAP,24mm, Black

Black

2шт.

12

47128049

HYD CONNECTOR

1шт.

13

11087776

CIRCLIP,Ext., M6, BLO

2шт.

14

5172456

PIN,6mm OD x 20mm L

2шт.

15

5178877

CLEVIS

2шт.

16

5116896

LINK,19.05mm Pitch

2шт.

Выбрано товаров: 18
