Запчасти Case IH FARMALL 95C (1.82.7/14[02]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - QUICK COUPLING (VAR.331166) (07) - HYDRAULIC SYSTEM

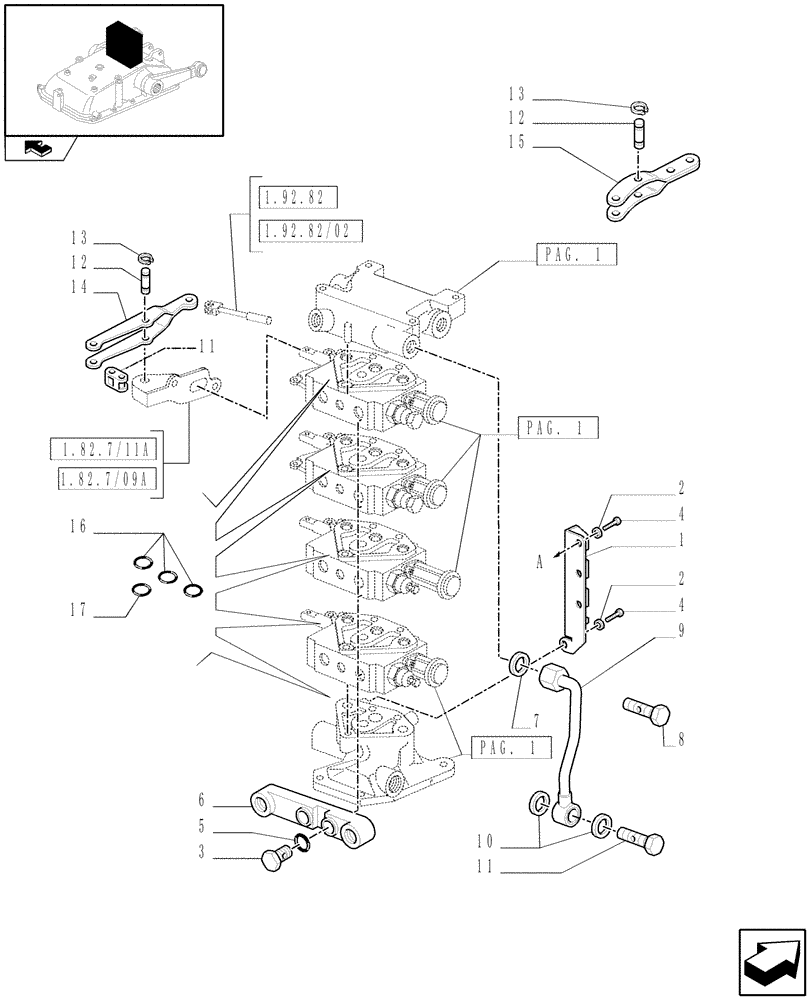

Схема запчастей Case IH FARMALL 95C - (1.82.7/14[02]) - 4 REAR REMOTE VALVES FOR EDC W/HYDRAULIC DIVIDER - QUICK COUPLING (VAR.331166) (07) - HYDRAULIC SYSTEM
6
1
3
12
5
13
4
10
11
2
11
1.92.82
1.92.82/02
4
a
9
14
13
8
12
15
16
2
7
pag. 1
home
pag. 1
pag. 1
1.82.7/09a
1.82.7/11a
17

Артикул

Название

Примечание

Количество

1

5179944

CONSOLE

1шт.

2

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

3

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

8шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

8шт.

6

5185533

HYD CONNECTOR

4шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

8

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

9

5188499

RIGID TUBE

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

8шт.

11

5116896

LINK,19.05mm Pitch

4шт.

12

5172456

PIN,6mm OD x 20mm L

4шт.

13

11087776

CIRCLIP,Ext., M6, BLO

4шт.

14

5178877

CLEVIS

2шт.

15

5178183

CLEVIS

2шт.

16

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

15шт.

17

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

5шт.

Выбрано товаров: 17
