Запчасти Case IH FARMALL 95C (1.82.714[03]) - HYDRAULIC TRAILER BRAKE (ITALY) - SOLENOID VALVES (VAR.330372-334372) (07) - HYDRAULIC SYSTEM

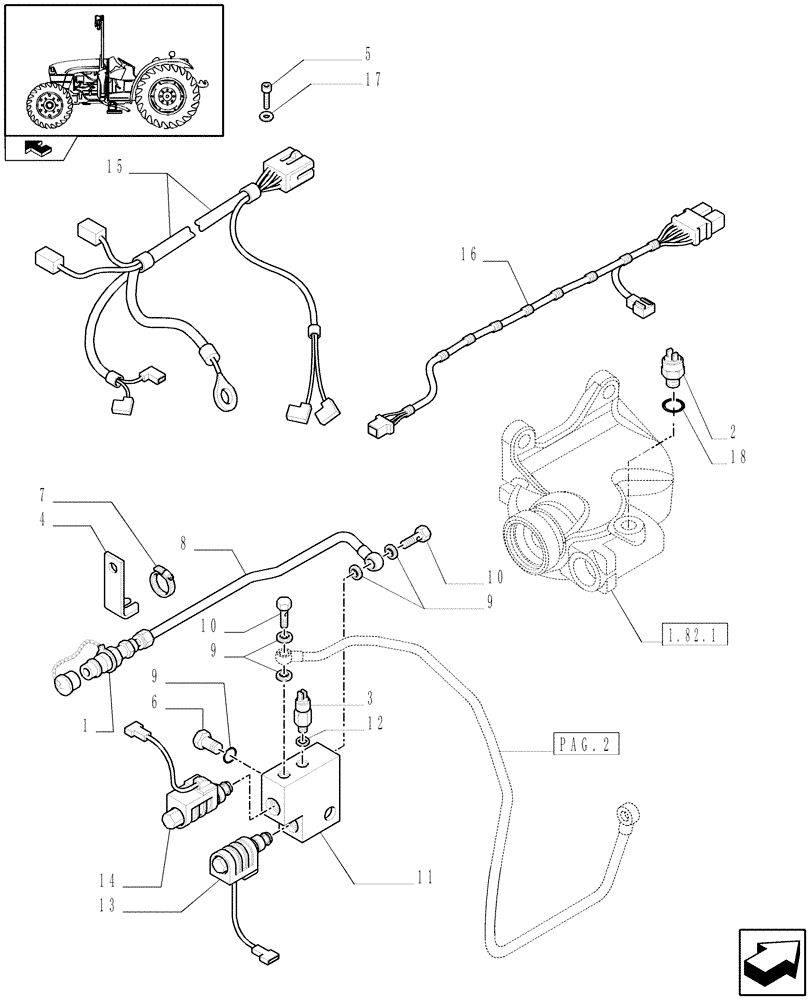

Схема запчастей Case IH FARMALL 95C - (1.82.714[03]) - HYDRAULIC TRAILER BRAKE (ITALY) - SOLENOID VALVES (VAR.330372-334372) (07) - HYDRAULIC SYSTEM
6
11
10
1
9
8
9
9
home
4
5
1.82.1
2
7
17
pag.2
15
3
13
18
14
10
16
12

Артикул

Название

Примечание

Количество

1

44015354

QUICK MALE COUPLING

1шт.

2

5161047

PRESSURE SWITCH

Safety, M12 x 1.5, 3 Bar, Serial Range: -C6395

1шт.

2

87494632

PRESSURE SWITCH,M12 x 1.5

3 Bar, Start Serial: D6395

1шт.

3

5157750

PRESSURE SWITCH

Oil Pressure, 10 Bar, Serial Range: -C6395

1шт.

3

87494633

PRESSURE SWITCH

Oil Pressure, 10 Bar, Start Serial: D6395

1шт.

4

5174628

BRACKET

1шт.

5

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

6

5174642

BANJO BOLT,M18 x 1.5 x 57.5mm

1шт.

7

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

8

5174640

RIGID TUBE,12mm OD

1шт.

9

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

5шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18 x 34

2шт.

11

5176996

BLOCK

1шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

6шт.

13

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

14

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

15

87677552

ELECTRIC CABLE

1шт.

Trailer Brake Transmission

1шт.

16

87560757

CABLE

1шт.

Trailer Brake Dashboard

1шт.

17

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

18

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

2шт.

19

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

1шт.

Выбрано товаров: 23
