(1.82.7/12[03]) - 4 REAR REMOTE VALVES FOR MDC W/HYDRAULIC DIVIDER - QUICK COUPLINGS (VAR.330166)

Запчасти Case IH FARMALL 95C (1.82.7/12[03]) - 4 REAR REMOTE VALVES FOR MDC W/HYDRAULIC DIVIDER - QUICK COUPLINGS (VAR.330166) (07) - HYDRAULIC SYSTEM

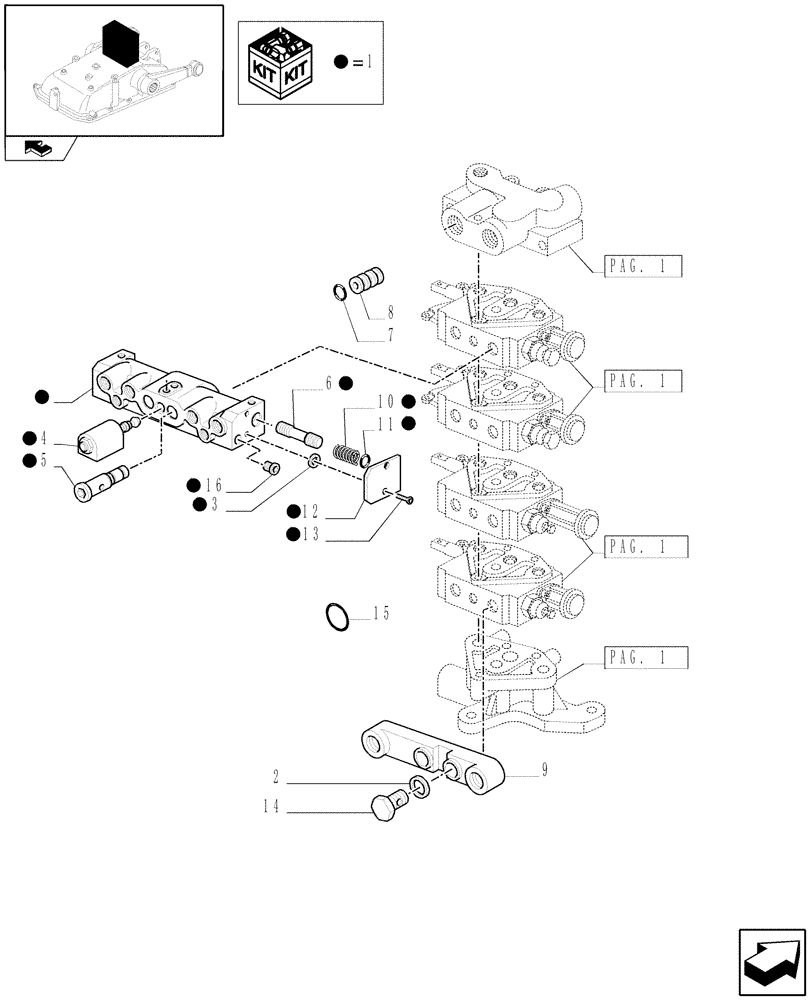

Схема запчастей Case IH FARMALL 95C - (1.82.7/12[03]) - 4 REAR REMOTE VALVES FOR MDC W/HYDRAULIC DIVIDER - QUICK COUPLINGS (VAR.330166) (07) - HYDRAULIC SYSTEM
13
3
5
1
1
12
1
10
1
2
pag. 1
home
pag. 1
pag. 1
pag. 1
11
1
16
1
1
8
1
14
9
4
1
1
7
1
15
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131020

BODY

Upper

1шт.

1

47131021

BODY

Lower

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

4шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

4

5176119

ELECTRO-VALVE,3W - 2p with diode

2шт.

5

47131017

BANJO BOLT,M18 x 1.5 x 67mm

Incl. 7

2шт.

6

47125557

ROD,16mm OD x 73mm L

2шт.

7

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

8

5190887

HYD CONNECTOR,19.5mm L

4шт.

9

5185533

HYD CONNECTOR

1шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

2шт.

11

14457481

O-RING,0.737" ID x 0.103" Width

2шт.

12

47125558

COVER

2шт.

13

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

14

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

16

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.
