Запчасти Case IH FARMALL 95C (1.82.4[07]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN - D6635 (07) - HYDRAULIC SYSTEM

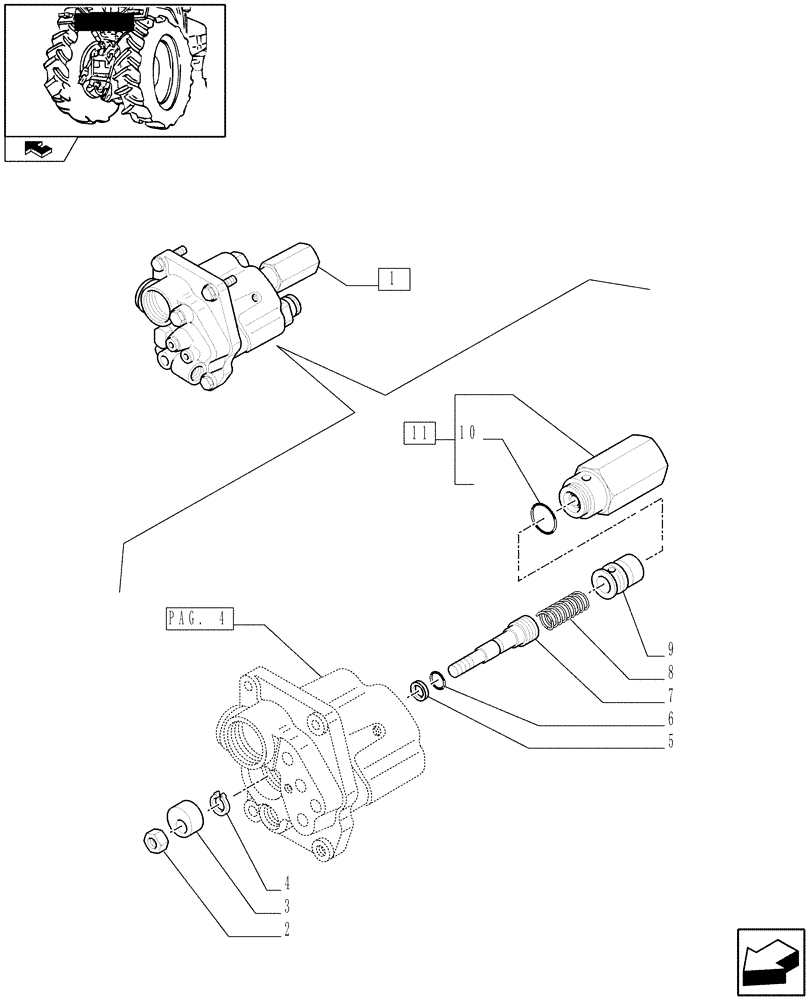

Схема запчастей Case IH FARMALL 95C - (1.82.4[07]) - LIFTER DISTRIBUTOR AND VALVES - BREAKDOWN - D6635 (07) - HYDRAULIC SYSTEM
3
8
9
2
pag. 4
home
6
11
5
4
1
7
10

Артикул

Название

Примечание

Количество

1

84277583

CONTROL VALVE

ASSY

1шт.

84277583R

REMAN-HYD VALVE

FARMALL 85C, FARMALL 95C BOTH TRACTOR (1/07)

1шт.

84277583C

CORE-VALVE HYD

Return Number

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

3

5170590

SPACER,12mm ID x 17mm OD x 12mm L

1шт.

4

13397476

SNAP RING,M10.8, Int

1шт.

5

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

6

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1.78x6.75

1шт.

7

5170591

PIN,16mm OD x 72mm L

1шт.

8

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

9

47124173

VOLTAGE REGULATOR

1шт.

10

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

(M17.12 ID x 2.62 Thk)

1шт.

11

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.

Выбрано товаров: 13
