Запчасти Case IH FARMALL 95C (1.82.0) - LIFTER, HOUSING AND COVERS (07) - HYDRAULIC SYSTEM

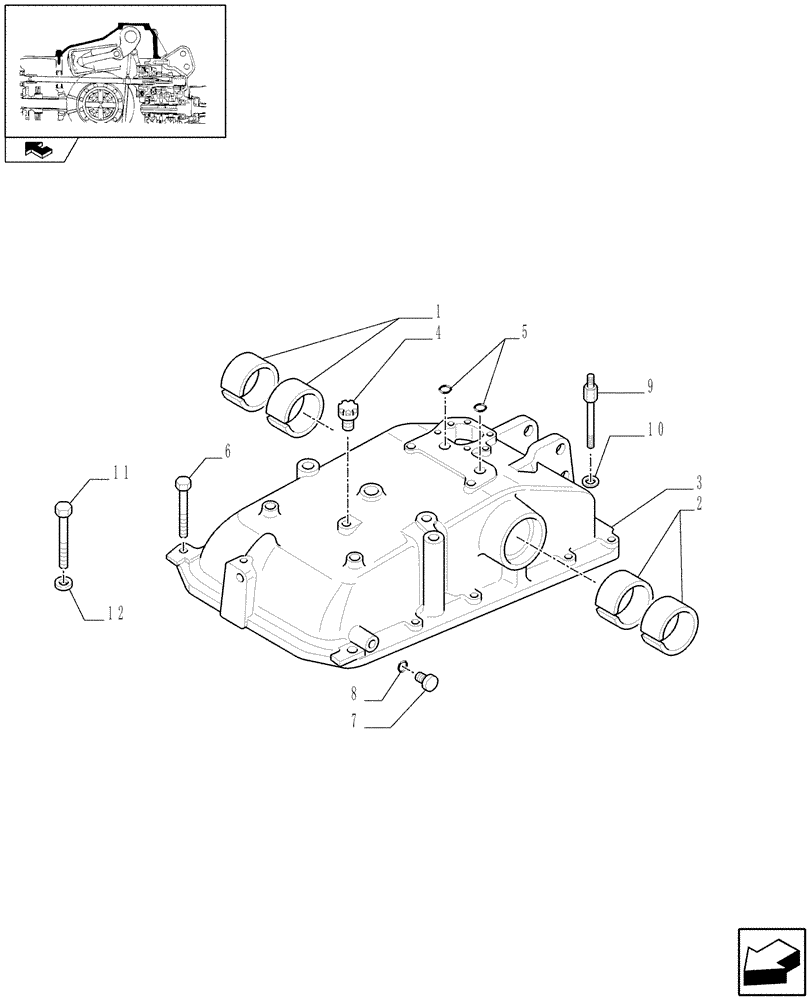

Схема запчастей Case IH FARMALL 95C - (1.82.0) - LIFTER, HOUSING AND COVERS (07) - HYDRAULIC SYSTEM
8
4
12
6
10
home
9
7
5
11
3
1
2

Артикул

Название

Примечание

Количество

1

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

2

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

3

87346203

BODY

Incl. 1, 2

1шт.

4

9636958

BREATHER

1шт.

5

14457581

O-RING,0.799" ID x 0.103" Width

2шт.

6

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

10шт.

6

15541631

BOLT,Hex, M12 x 1.25 x 100mm, Cl 10.9

1шт.

7

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

9

15542521

SCREW,Hex, M12 x 1.25 x 190mm, Cl 8.8

1шт.

10

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.

11

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

Deluxe Push-Pull with Oil Collection Bottle, VAR.330543-330544-330545-330546

1шт.

11

15542521

SCREW,Hex, M12 x 1.25 x 190mm, Cl 8.8

1шт.

Deluxe Push-Pull with Oil Collection Bottle, VAR.330543-330544-330545-330546

1шт.

12

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

3шт.

Deluxe Push-Pull with Oil Collection Bottle, VAR.330543-330544-330545-330546

1шт.

Выбрано товаров: 17
