Запчасти Case IH FARMALL 95C (1.81.9/02[04]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - PIPES (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM

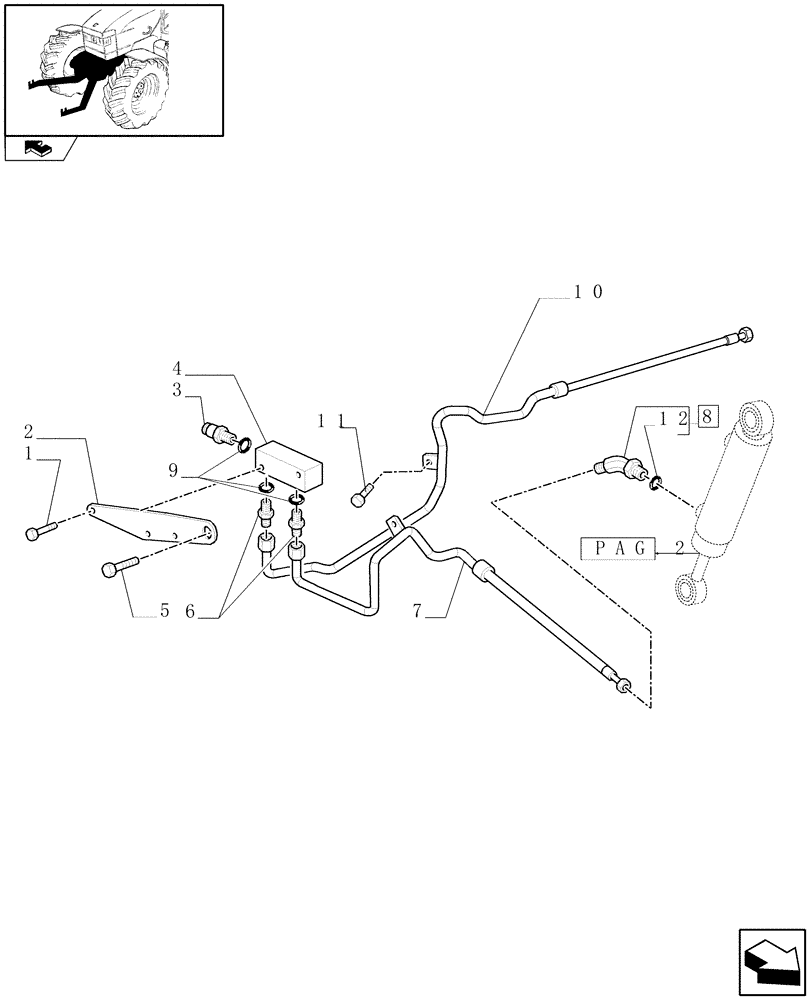

Схема запчастей Case IH FARMALL 95C - (1.81.9/02[04]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - PIPES (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM
2
8
home
pag.2
11
4
5
6
9
12
3
7
1
10

Артикул

Название

Примечание

Количество

1

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

2

87745307

BRACKET

1шт.

3

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.

4

47057148

BLOCK

1шт.

5

11121334

BOLT,Hex, M20 x 35, 10.9, Full Thd

M20 x 35, Full 10.9

1шт.

6

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

M22x1.5

2шт.

7

87745310

RIGID TUBE,883 mm L

RH

1шт.

7

84169586

HYD TUBE,16 mm OD x 646 mm L

RH

1шт.

8

5159994

HYD CONNECTOR

M18x15

2шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

10

87745312

HYD TUBE,1060 mm L

LH

1шт.

10

84169585

HYD TUBE,16 mm OD x 1241 mm L

LH

1шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 14
