(1.81.9/01[02]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - ARMS AND CYLINDERS (VAR.330404-331404-332404-333404)

Запчасти Case IH FARMALL 95C (1.81.9/01[02]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - ARMS AND CYLINDERS (VAR.330404-331404-332404-333404) (07) - HYDRAULIC SYSTEM

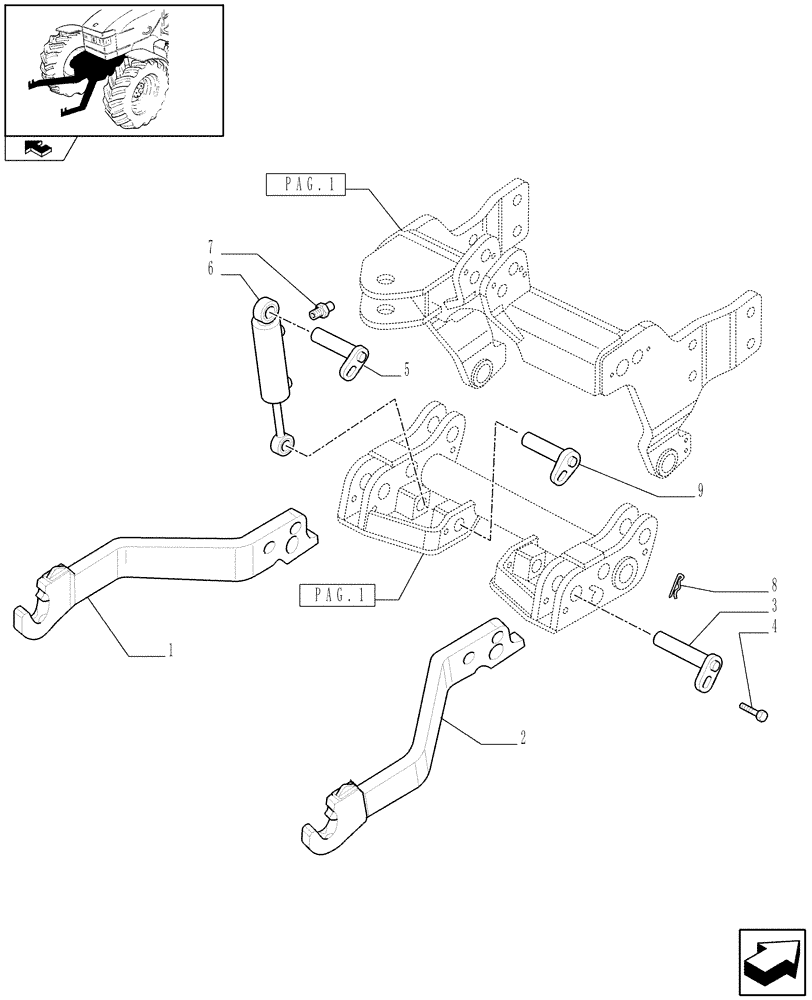

Схема запчастей Case IH FARMALL 95C - (1.81.9/01[02]) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - ARMS AND CYLINDERS (VAR.330404-331404-332404-333404) (07) - HYDRAULIC SYSTEM
1
4
home
6
pag.1
2
5
8
9
7
3
pag.1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057052

LIFT ARM

RH

1шт.

2

47057051

LIFT ARM

LH

1шт.

3

47056041

PIN

4шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

5

47056039

SCREW

2шт.

6

87301864

CYLINDER,Double Acting, 28mm Rod, 155mm Stroke

2шт.

84150663

SEAL KIT

1шт.

7

47056732

BANJO BOLT

M14x1.5

2шт.

8

47056731

SPRING CLIP

2шт.

9

87596330

PIN

2шт.
