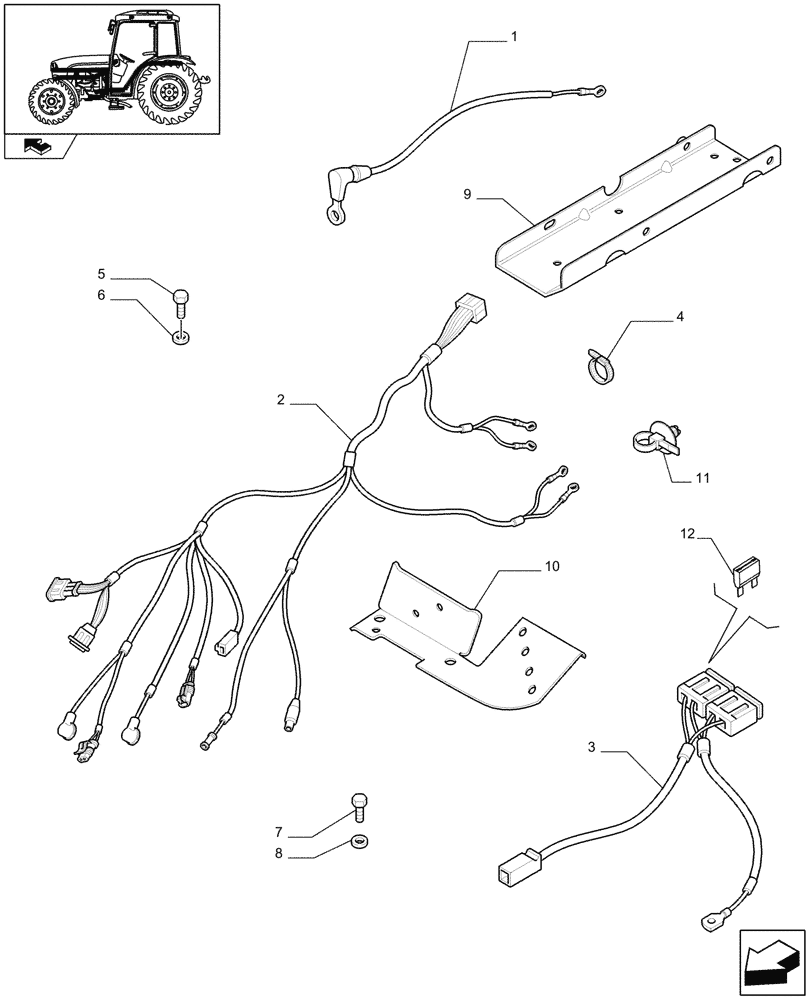

Запчасти Case IH FARMALL 95C (1.75.4[04]) - AUXILIARY CABLES - W/CAB (06) - ELECTRICAL SYSTEMS

1

87370901

CABLE

1шт.

Harness From Starter Motor to Alternator

1шт.

2

87375327

CABLE

, Serial Range: -C6502

1шт.

Engine Side Harness

1шт.

2

84285288

ELECTRIC CABLE

, Serial Range: D6502-C7236

1шт.

Engine Side Harness

1шт.

2

47370174

ELECTRIC CABLE

, Start Serial: D7236

1шт.

Engine Side Harness

1шт.

3

87632695

CABLE

ASSY Incl 12, Serial Range: -C6502

1шт.

Engine Side Power Harness

1шт.

3

84283331

ELECTRIC CABLE

, Start Serial: D6502

1шт.

Engine Side Power Harness

1шт.

4

14560287

CABLE TIE,207.00mm L

COLLAR

5шт.

5

16042931

BOLT,Hex, M8 x 1.25 x 10mm, Cl 10.9, Full Thd

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

7

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

1шт.

8

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

9

87665143

GUIDE

1шт.

10

87677157

BRACKET

1шт.

11

82033028

CABLE TIE,170mm L

1шт.

12

5173263

FUSE,50A, Maxi, Red

2шт.
