(1.48.2) - 4 REAR BALLAST (50KG) (VAR.330470)

Запчасти Case IH FARMALL 95C (1.48.2) - 4 REAR BALLAST (50KG) (VAR.330470) (05) - REAR AXLE

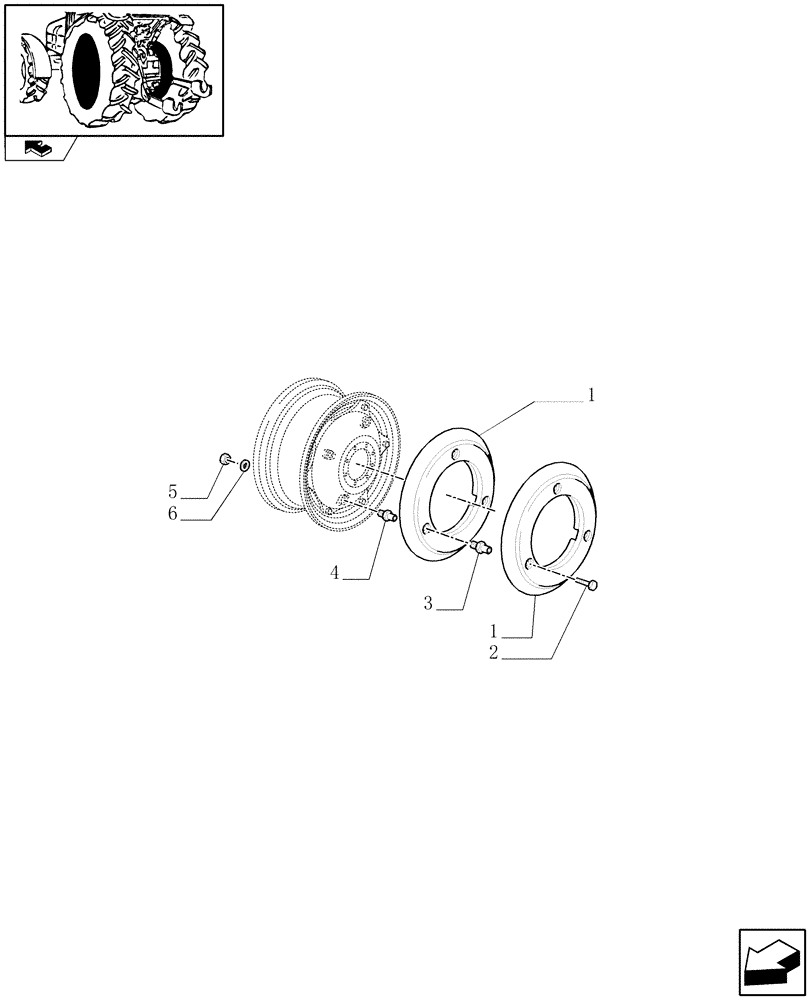

Схема запчастей Case IH FARMALL 95C - (1.48.2) - 4 REAR BALLAST (50KG) (VAR.330470) (05) - REAR AXLE
4
1
6
5
1
2
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47131052

WHEEL WEIGHT,50Kg/110Lb

50kg.

4шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16 x 1.5 x 78

6шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16 x 1.5 x 60

6шт.

5

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16 x 1.5

6шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
