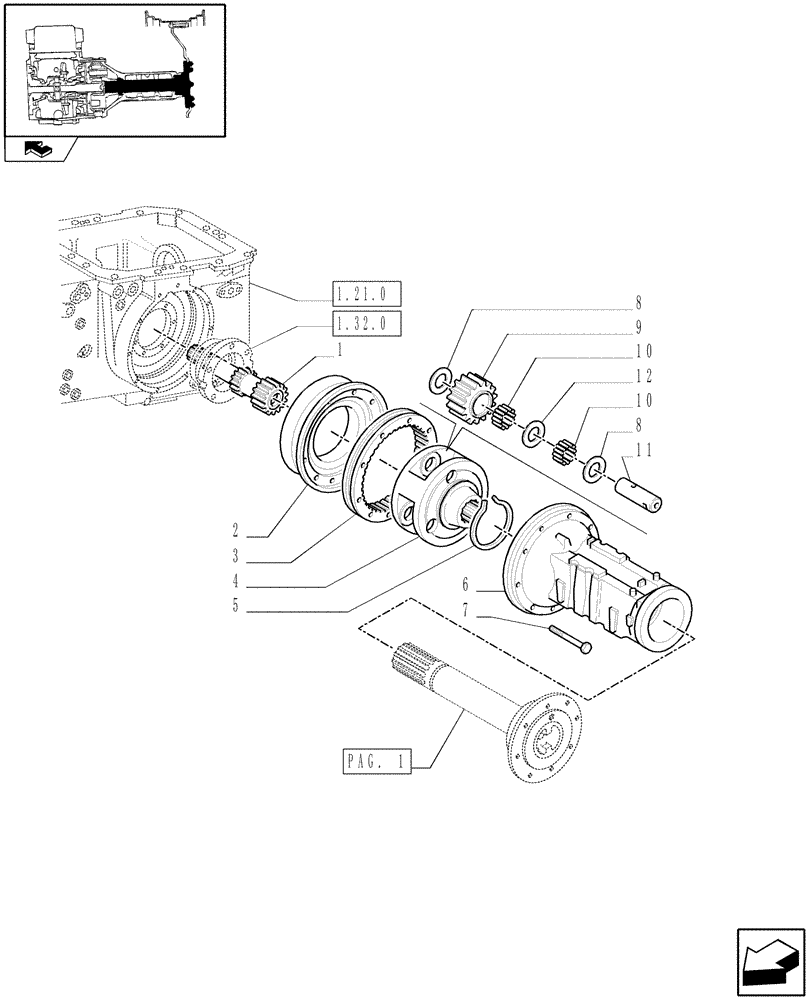

Запчасти Case IH FARMALL 95C (1.48.1[04]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

47137058

HALF SHAFT

LH

1шт.

1

47137057

HALF SHAFT

RH

1шт.

2

5172087

SPACER,175mm ID x 337mm OD x 53mm L

2шт.

3

5125064

RING GEAR

2шт.

4

4998879

CARRIER

2шт.

5

4998883

CIRCLIP,112mm ID x 119mm OD

D=119

2шт.

6

47137047

FINAL DRIVE HOUSING

2шт.

7

15978324

BOLT,Hex, M14 x 1.5 x 140mm, Cl 8.8

1шт.

7

11422124

BOLT,Hex, M14 x 1.5 x 130, 8.8

15шт.

8

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

9

5125065

PLANETARY GEAR,25T

6шт.

10

5101688

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 21mm W

35.7x49.7x21

6шт.

11

4997203

PIN,35.7mm OD x 98mm L

6шт.

12

4997217

SPACER,38mm ID x 49.6mm OD x 5mm L

38x49.5x5

6шт.
