(1.44.0) - FRONT WEIGHT CARRIER WITH INTEGRATED TOW HOOK (VAR.330234)

Запчасти Case IH FARMALL 95C (1.44.0) - FRONT WEIGHT CARRIER WITH INTEGRATED TOW HOOK (VAR.330234) (04) - FRONT AXLE & STEERING

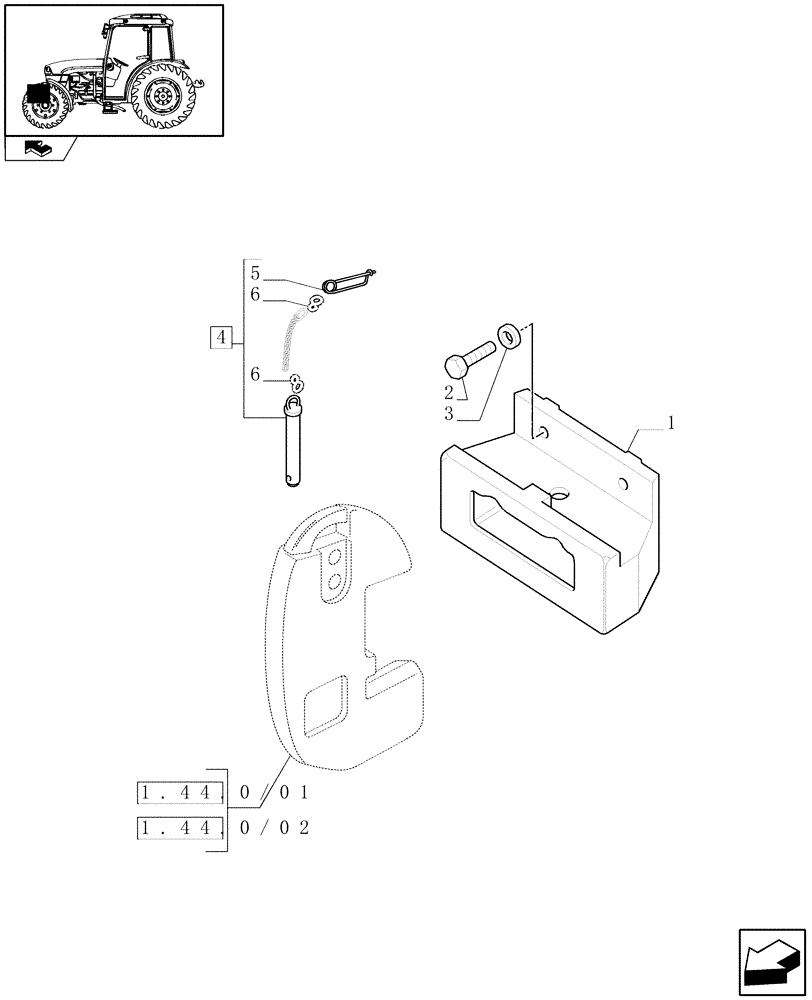

Схема запчастей Case IH FARMALL 95C - (1.44.0) - FRONT WEIGHT CARRIER WITH INTEGRATED TOW HOOK (VAR.330234) (04) - FRONT AXLE & STEERING
1.44.0/01
1.44.0/02
2
5
4
home
1
6
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47123848

SUPPORT

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x38x4.6

4шт.

4

5184442

PIN,30mm OD

6шт.

5

5152004

HAIR PIN COTTER,195mm L

2шт.

6

44901192

SNAP RING,25mm ID

2шт.
