Запчасти Case IH FARMALL 95C (1.40.5/10[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (40 KM/H) - EPICYCLIC REDUCTION GEAR (VAR.331323-332323) (04) - FRONT AXLE & STEERING

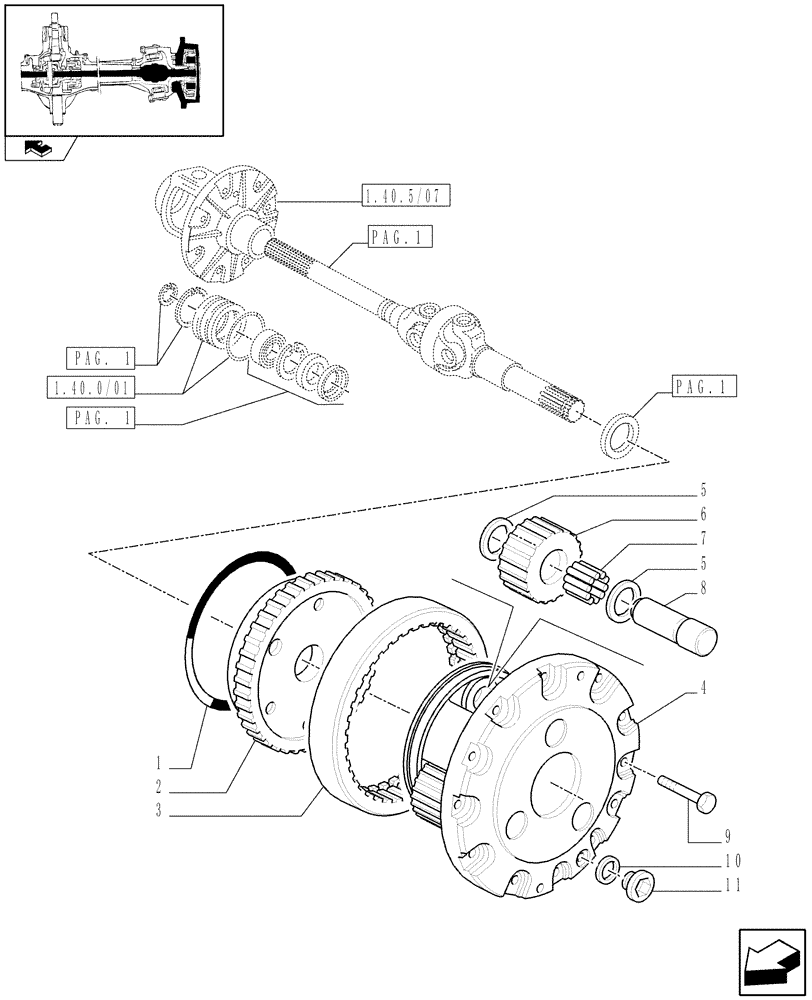

Схема запчастей Case IH FARMALL 95C - (1.40.5/10[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (40 KM/H) - EPICYCLIC REDUCTION GEAR (VAR.331323-332323) (04) - FRONT AXLE & STEERING
2
pag.1
7
4
6
11
9
10
5
1
home
pag. 1
pag. 1
3
1.40.5/07
1.40.0/01
5
pag.1
8

Артикул

Название

Примечание

Количество

1

5165162

SNAP RING,M50, Int

2шт.

2

5173284

GEAR,60T

2шт.

3

5165273

RING GEAR,60T

2шт.

4

5181049

SUPPORT

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25x45x0.8

12шт.

6

5169137

GEAR,23T

6шт.

7

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

25.6x35.6x29.8

6шт.

8

5181050

PIN,27mm OD x 63.5mm L

6шт.

9

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

Выбрано товаров: 11
