Запчасти Case IH FARMALL 95C (1.32.4) - DIFFERENTIAL GEARS (03) - TRANSMISSION

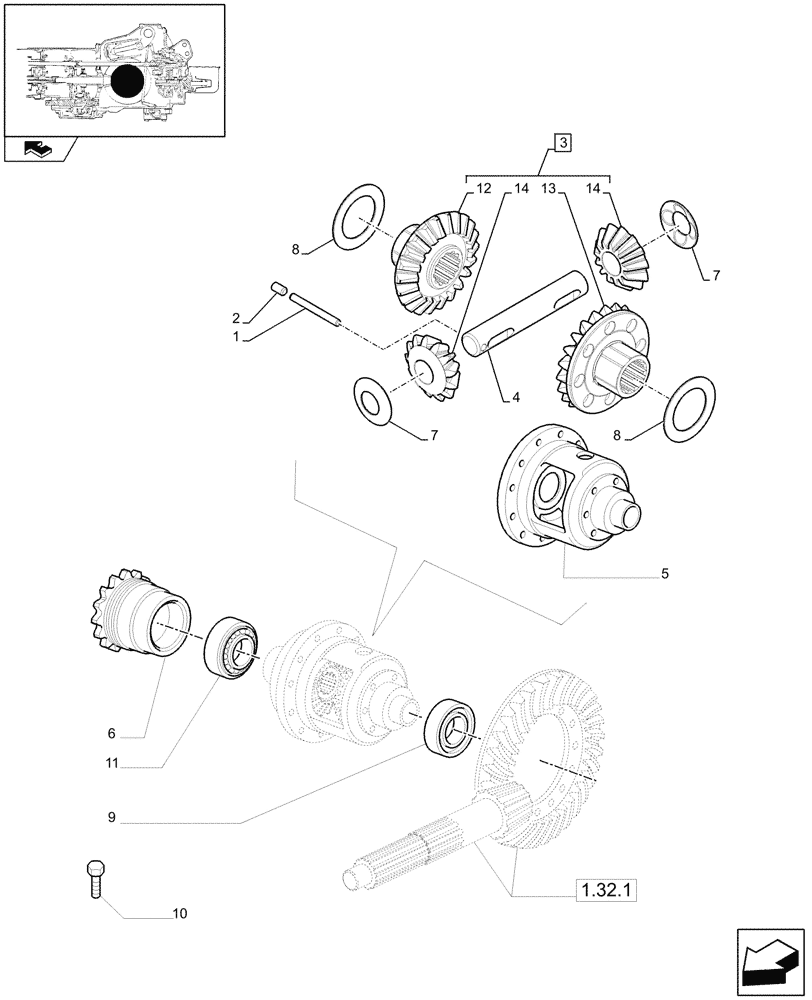

Схема запчастей Case IH FARMALL 95C - (1.32.4) - DIFFERENTIAL GEARS (03) - TRANSMISSION
12
home
8
6
7
14
1
3
2
14
1.32.1
1
13
9
8
10
7
4
5
1

Артикул

Название

Примечание

Количество

1

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5x6.5

1шт.

2

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

3

47137922

GEAR SET

ASSY, Incl 12 - 14

1шт.

4

5148935

PIN,24mm OD x 144mm L

1шт.

5

87312351

CARRIER

1шт.

6

87362211

SUPPORT

1шт.

7

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

8

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

8

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

8

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

8

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

8

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

8

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

8

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

8

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

8

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

9

87312350

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

50x90

1шт.

10

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

11

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

60x95x23

1шт.

12

47137061

DRIVEN SPROCKET

1шт.

13

47137062

DRIVEN SPROCKET

1шт.

14

5103870

PINION,24mm ID, 13T

2шт.

Выбрано товаров: 22
