(1.32.0) - CASINGS, COVERS AND SUPPORTS

Запчасти Case IH FARMALL 95C (1.32.0) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION

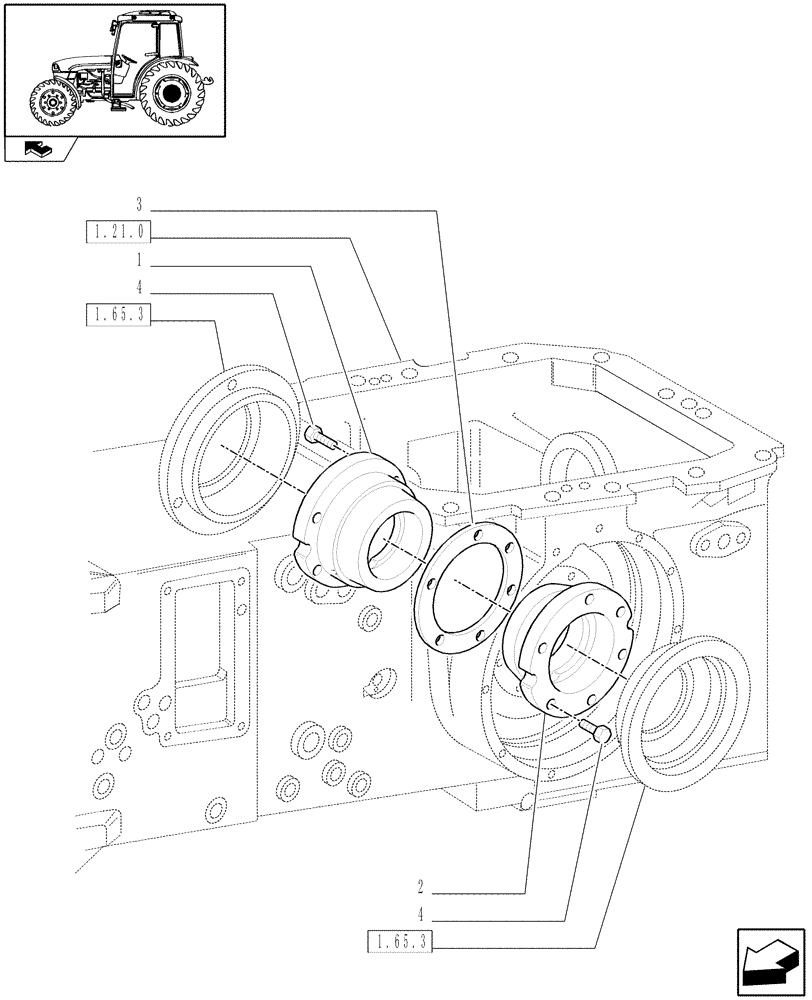

Схема запчастей Case IH FARMALL 95C - (1.32.0) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION
4
1.65.3
1.65.3
1.21.0
3
2
home
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5168200

SUPPORT

RH

1шт.

2

5168201

SUPPORT

LH

1шт.

3

4991682

SHIM,120mm ID x 158mm OD x 0.5mm Thk

0.50MM

1шт.

3

4991683

SHIM,120mm ID x 158mm OD x 0.2mm Thk

0.20MM

1шт.

3

4991684

SHIM,120mm ID x 158mm OD x 0.15mm Thk

0.15MM

1шт.

4

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.
