Запчасти Case IH FARMALL 95C (1.28.7/01[07]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - GEARBOX HYDRAULIC CONTROL (VAR.330275) (03) - TRANSMISSION

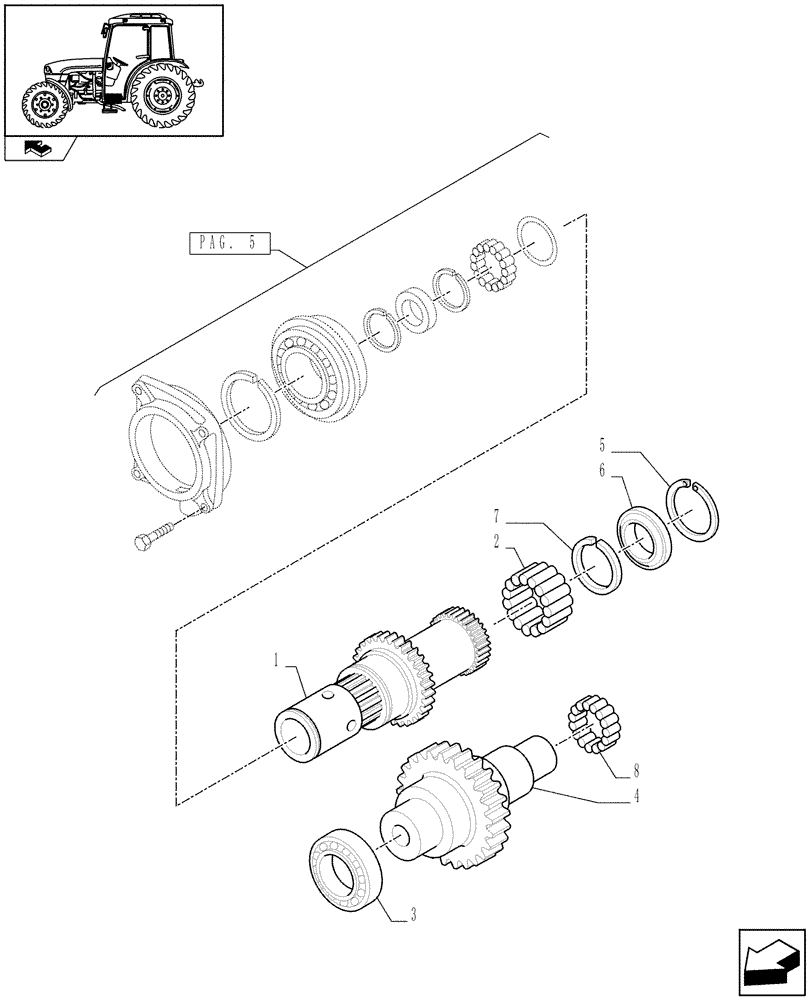

Схема запчастей Case IH FARMALL 95C - (1.28.7/01[07]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - GEARBOX HYDRAULIC CONTROL (VAR.330275) (03) - TRANSMISSION
5
home
pag. 5
2
7
1
3
4
8
6

Артикул

Название

Примечание

Количество

1

5177501

DRIVEN SHAFT,40T / 26T

Low

1шт.

2

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

3

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

4

5177539

DRIVEN GEAR,36T

Low

1шт.

5

5117076

CIRCLIP,M47, Ext

1шт.

6

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

2шт.

7

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

2шт.

8

5168198

ROLLER BEARING,25mm ID x 33mm OD x 20mm W

1шт.

Выбрано товаров: 8
