Запчасти Case IH FARMALL 95C (1.27.3/02[01]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - SOLENOID VALVES (VAR.332402-339402) (03) - TRANSMISSION

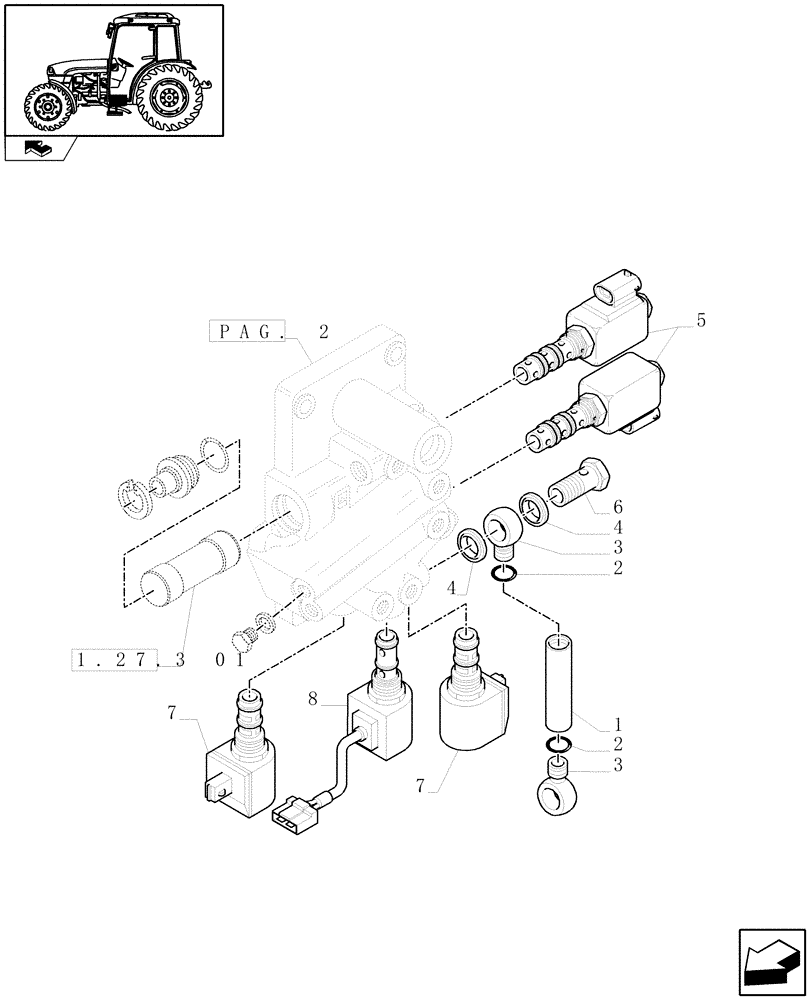

Схема запчастей Case IH FARMALL 95C - (1.27.3/02[01]) - 4WD TRACTION SELECTION WITH 32X16 HYDR. TRANSMISSION - SOLENOID VALVES (VAR.332402-339402) (03) - TRANSMISSION
3
6
4
4
3
8
2
1.27.3 01
7
1
pag. 2
home
5
7
2

Артикул

Название

Примечание

Количество

1

5173681

RIGID TUBE

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

3

5173682

BANJO BOLT,M9 x 30mm

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

5

84148281

ELECTRO-VALVE

Solenoid, Proportional Pressure

2шт.

5

84148281R

REMAN-HYD VALVE

Remanufactured Electro-Valve

2шт.

5

84148281C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, VALVE, SINGLE SLICE MMV, (FARMALL 85C, FARMALL 95C)

2шт.

6

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

4шт.

7

5168052

SOLENOID VALVE

Solenoid, Less Diode

2шт.

8

82008511

SOLENOID VALVE

Solenoid, Dump

1шт.

Выбрано товаров: 10
