Запчасти Case IH FARMALL 95C (1.21.0[02]) - TRACTOR BODY (03) - TRANSMISSION

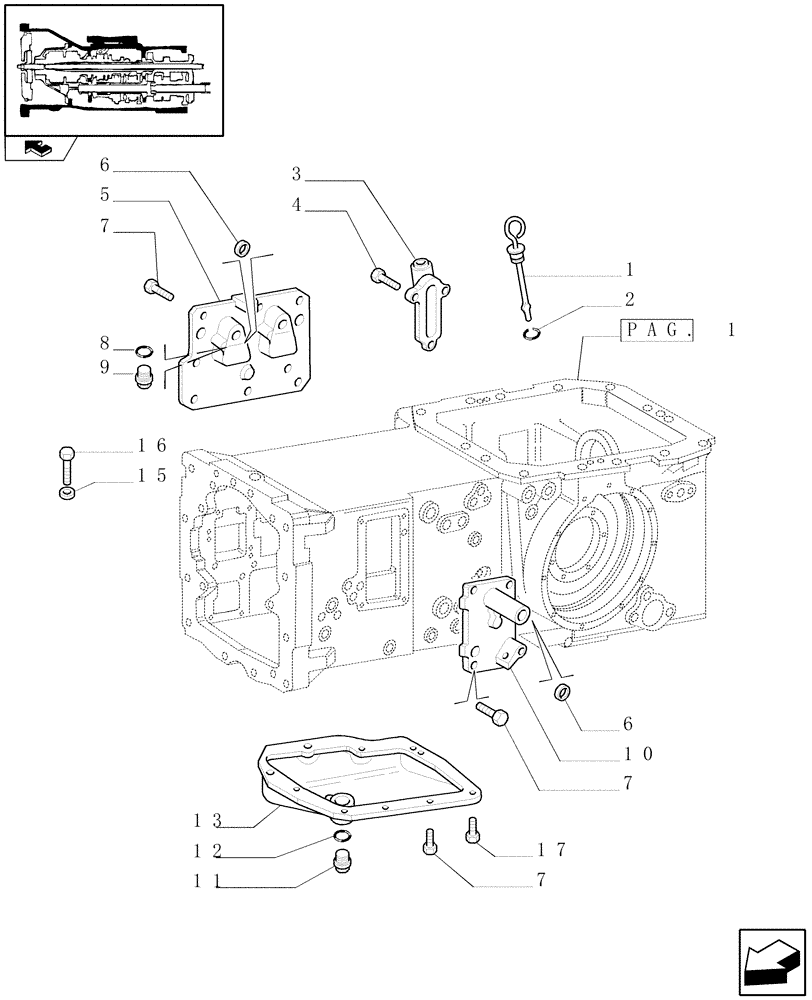

Схема запчастей Case IH FARMALL 95C - (1.21.0[02]) - TRACTOR BODY (03) - TRANSMISSION
3
12
7
6
13
4
6
15
10
1
home
pag. 1
7
9
16
8
7
11
17
2
5

Артикул

Название

Примечание

Количество

1

5182954

DIPSTICK,165mm L

1шт.

2

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

2шт.

3

5177062

NECK FILLER

1шт.

4

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

, Serial Range: -C5896

3шт.

4

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D5896

3шт.

5

87346017

COVER

1шт.

5

87747940

COVER

1шт.

4WD Std Steering for 32 x 16 Hi-Lo and Power Shuttle Trasm. for front HPL Axle Mounted, VAR.339402

1шт.

6

5168241

SEAL,22mm ID x 32mm OD x 9mm Thk

22x32x8

3шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

1шт.

8

4858609

WASHER,Brass

16x22x1.5

2шт.

8

2852356

SEALING WASHER

14x20x1.5

3шт.

9

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

9

10300714

PLUG,M16 x 1.5 x 14

2шт.

9

10305171

PLUG,M22 x 1.5 x 21

1шт.

10

5168149

COVER

1шт.

11

5151213

PLUG,M35 x 1.5

M35x2585C

1шт.

For 2WD ISO, VAR.331401-333401-334401-336401

1шт.

12

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

13

5172917

COVER

2WD, 85C

1шт.

For 2WD ISO, VAR.331401-333401-334401-336401

1шт.

14

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

85C

1шт.

15

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

12шт.

16

11227931

BOLT,Hex, M10 x 1.25 x 28mm, Cl 10.9, Full Thd

12шт.

Выбрано товаров: 25
