(1.19.1/01[02]) - DRY AIR CLEANER ROUNDED SHAPE WITH PRE-CLEANER AND DUST EJECTOR FOR FRONT HPL (VAR.332200)

Запчасти Case IH FARMALL 95C (1.19.1/01[02]) - DRY AIR CLEANER ROUNDED SHAPE WITH PRE-CLEANER AND DUST EJECTOR FOR FRONT HPL (VAR.332200) (02) - ENGINE EQUIPMENT

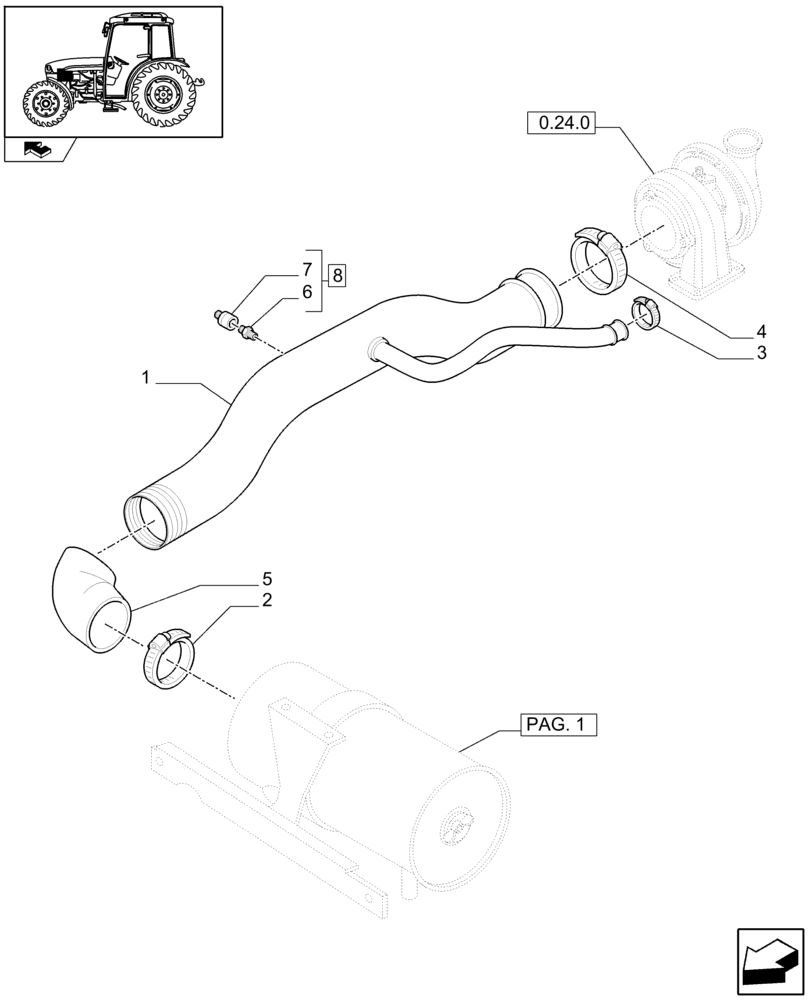

Схема запчастей Case IH FARMALL 95C - (1.19.1/01[02]) - DRY AIR CLEANER ROUNDED SHAPE WITH PRE-CLEANER AND DUST EJECTOR FOR FRONT HPL (VAR.332200) (02) - ENGINE EQUIPMENT
7
0.24.0
1
6
5
home
4
pag. 1
2
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87574513

RIGID TUBE

1шт.

2

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.

3

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

1шт.

4

13001190

HOSE CLAMP,80mm - 100mm, Worm Gear

1шт.

5

87556129

HOSE,76.00 mm ID x 1300.00 mm

1шт.

6

5138820

ADAPTER

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 8

1шт.

8

5138819

INDICATOR

ASSY Incl 6,7, Serial Range: -C7236

1шт.

8

47373477

SENSOR

ASSY Incl 6,7, Start Serial: D7236

1шт.
