(1.19.1/01[01]) - DRY AIR CLEANER ROUNDED SHAPE WITH PRE-CLEANER AND DUST EJECTOR FOR FRONT HPL (VAR.332200)

Запчасти Case IH FARMALL 95C (1.19.1/01[01]) - DRY AIR CLEANER ROUNDED SHAPE WITH PRE-CLEANER AND DUST EJECTOR FOR FRONT HPL (VAR.332200) (02) - ENGINE EQUIPMENT

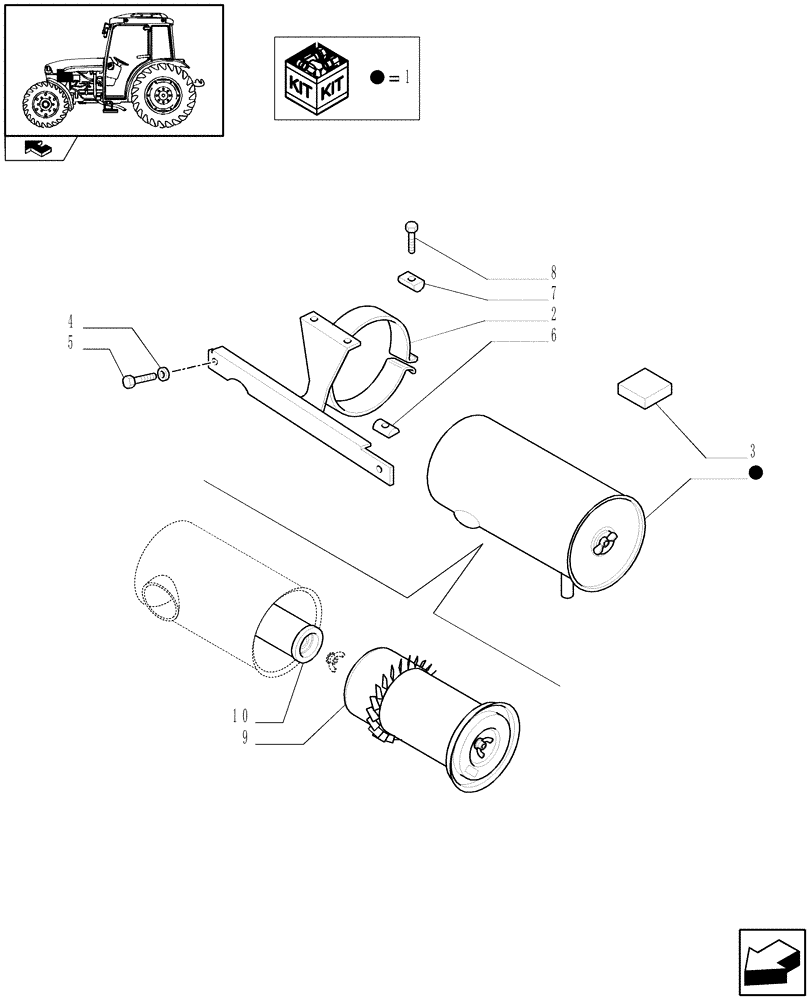

Схема запчастей Case IH FARMALL 95C - (1.19.1/01[01]) - DRY AIR CLEANER ROUNDED SHAPE WITH PRE-CLEANER AND DUST EJECTOR FOR FRONT HPL (VAR.332200) (02) - ENGINE EQUIPMENT
10
2
6
1
3
5
7
4
1
home
9
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87624137

AIR FILTER

ASSY

1шт.

2

87559866

FRAME

1шт.

3

87675599

STRIP-GASKET

1шт.

4

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

6

5120754

PIN

1шт.

7

5120755

PIN,16mm OD x 15mm L

1шт.

8

5120756

SCREW

1шт.

9

87313626

AIR FILTER

Main

1шт.

10

87313629

AIR FILTER

Safety

1шт.
