Запчасти Case IH FARMALL 95C (1.19.1) - DRY AIR CLEANER (02) - ENGINE EQUIPMENT

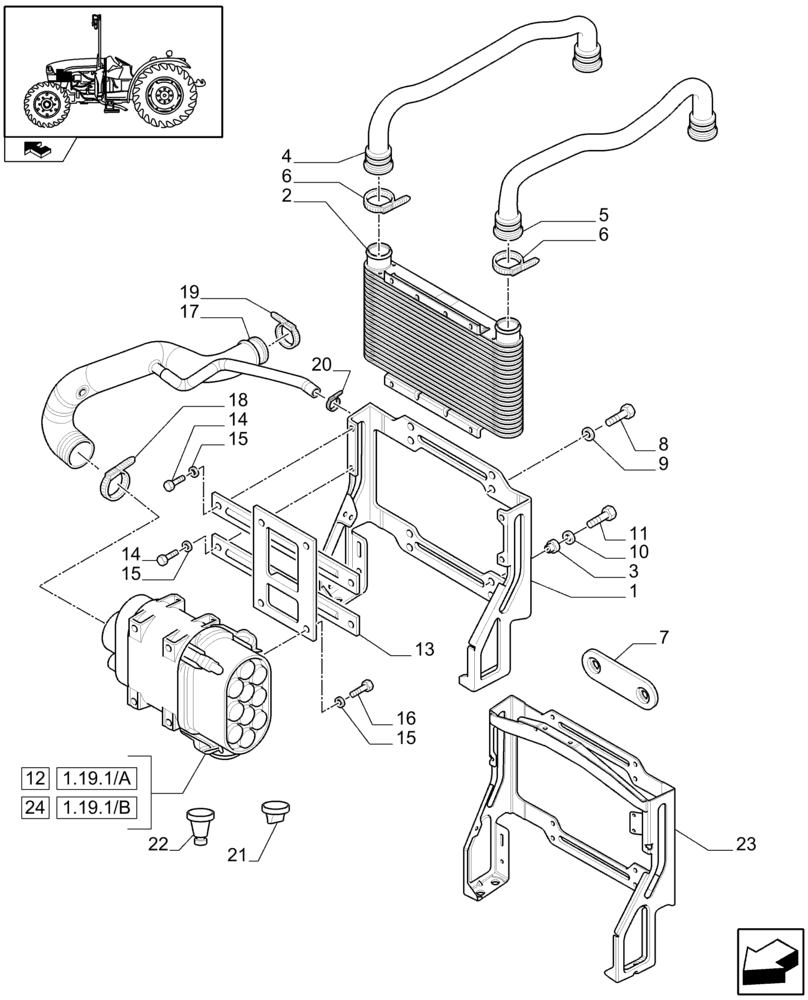

Схема запчастей Case IH FARMALL 95C - (1.19.1) - DRY AIR CLEANER (02) - ENGINE EQUIPMENT
19
21
20
5
6
14
14
10
11
13
15
23
18
17
1.19.1/b
6
8
15
7
home
9
1.19.1/a
2
4
16
15
12
22
1
24
3

Артикул

Название

Примечание

Количество

1

87551707

SUPPORT

1шт.

2

84308764

HEAT EXCHANGER

1шт.

3

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

4шт.

4

87563918

FLEXIBLE HOSE

1шт.

5

87563919

FLEXIBLE HOSE

1шт.

6

87644002

HOSE CLIP,57-65mm

3шт.

6

87644003

HOSE CLIP,62-70mm

1шт.

7

87559870

RUBBER SEAL

2шт.

8

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

10

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

4шт.

10

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

11

16043214

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

4шт.

12

87347224

FILTER ASSY

ASSY, Serial Range: -C7236

1шт.

13

87559869

FRAME

1шт.

14

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

15

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

16

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

4шт.

17

87574512

RIGID TUBE

1шт.

18

13001190

HOSE CLAMP,80mm - 100mm, Worm Gear

1шт.

19

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

20

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

1шт.

21

87347229

PROTECTION CAP,84mm OD x 68mm L

1шт.

22

87347231

ADAPTER

ASSY

1шт.

Dry Air Cleaner Rounded Shape with Pre-Cleaner and Dust Ejector for front HPL, VAR. 330200

1шт.

23

87743241

FRAME

1шт.

Front HPL VAR.330404-330789-331404-332404-333404

1шт.

24

47360442

AIR CLEANER

ASSY, Start Serial: D7236

1шт.

Выбрано товаров: 28
