Запчасти Case IH FARMALL 95C (1.17.0[01]) - RADIATOR AND COOLING TANK (02) - ENGINE EQUIPMENT

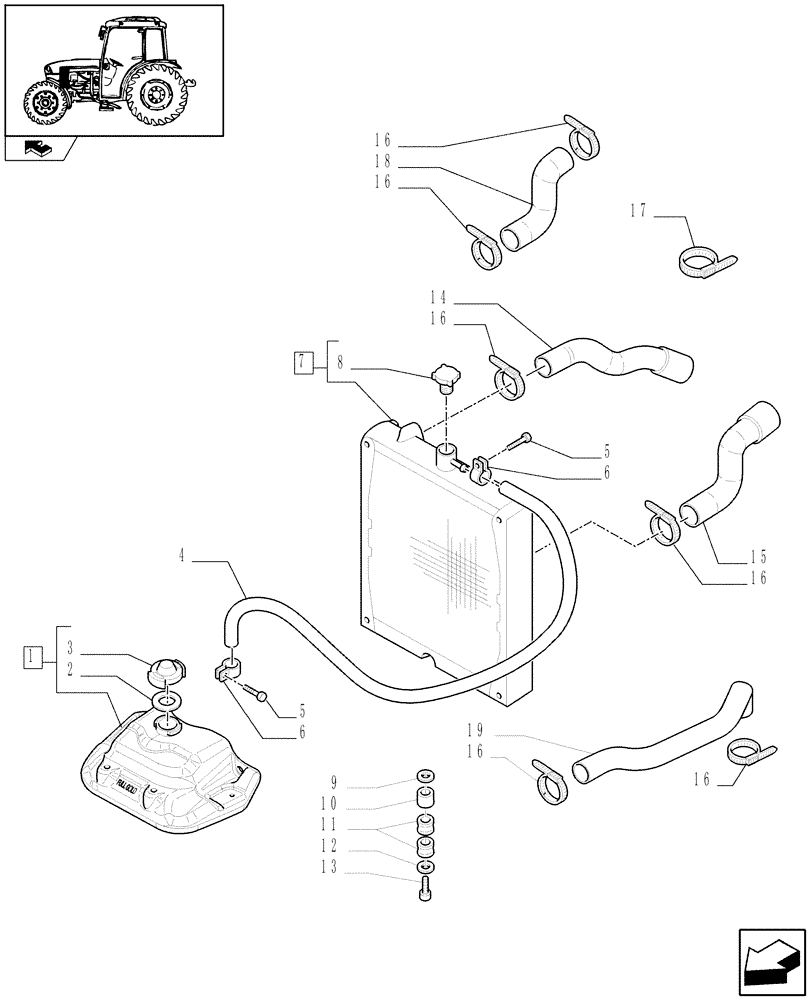

Схема запчастей Case IH FARMALL 95C - (1.17.0[01]) - RADIATOR AND COOLING TANK (02) - ENGINE EQUIPMENT
16
4
12
10
9
3
16
6
5
11
7
16
14
home
18
16
16
19
17
5
1
2
16
13
15
8
6

Артикул

Название

Примечание

Количество

1

87563922

TANK

1шт.

2

4153008

SEAL

SEALRING

1шт.

3

4274034

CAP

1шт.

4

82849374

HOSE,7mm ID x 1700mm L

1шт.

5

15698004

SELF-TAP SCREW,Hex Wash Hd, M6 x 3 x 30mm

2шт.

6

10186590

CLAMP,11mm - 13mm

2шт.

7

87335352

RADIATOR

1шт.

8

87558952

PLUG

1шт.

9

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

10

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

11

5108225

RUBBER MOUNTING

4шт.

12

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

13

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

14

87352704

HOSE

1шт.

15

87352708

HOSE

1шт.

16

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

17

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

18

87610888

FLEXIBLE HOSE

1шт.

Dry Air Cleaner Rounded Shape with Pre-Cleaner and Dust Ejector for front HPL, VAR. 330200

1шт.

19

87610889

FLEXIBLE HOSE

1шт.

Dry Air Cleaner Rounded Shape with Pre-Cleaner and Dust Ejector for front HPL, VAR. 330200

1шт.

Выбрано товаров: 21
