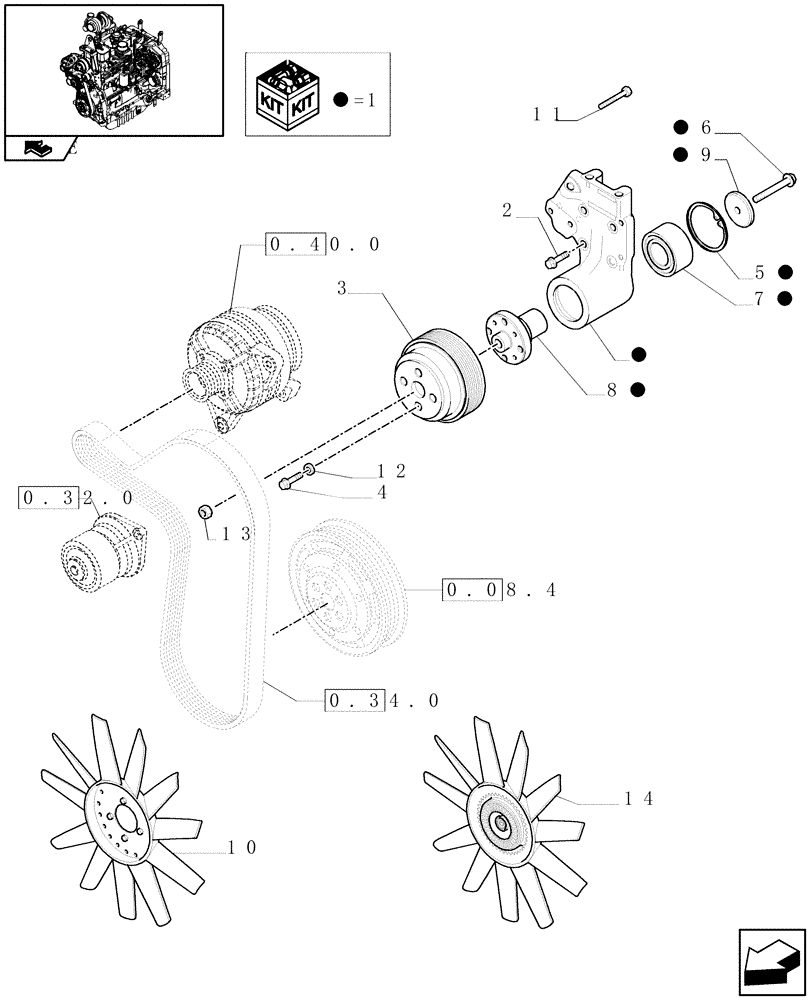

1
2854422
HUB
ASSY
1шт.
2
4899089
SCREW,Hex Flg, M8 x 1.25 x 50
4шт.
3
87519548
PULLEY,132mm OD
1шт.
4
11106421
SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8
4шт.
5
2852171
SNAP RING,M68.2, Ext
1шт.
6
2854424
SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm
M10 x 1.5 x 70
1шт.
7
4892732
BALL BEARING,34mm ID x 64mm OD x 37mm W
1шт.
8
2853705
HUB
1шт.
9
4890732
RETAINER,11.50mm ID x 52mm OD x 7mm
1шт.
10
5198172
FAN
1шт.
11
87302310
HEX SOC SCREW,M10 x 1.5 x 80mm
M10x80
1шт.
12
11198374
BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk
4шт.
13
11701711
NUT,Hex, M10, Cl 8, ZND
1шт.
14
47135806
FAN,11 Blades, 450mm OD
1шт.
Fan with Visco, VAR.330009
1шт.
