(83.00[05]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH FARMALL 95 (83.00[05]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

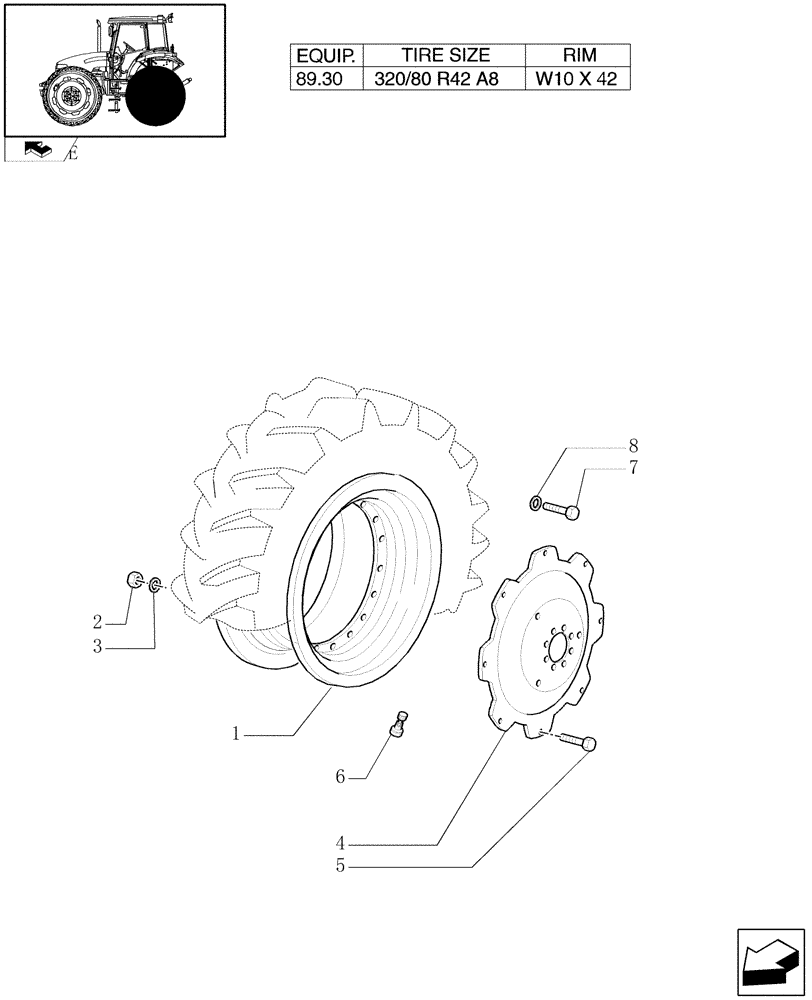

Схема запчастей Case IH FARMALL 95 - (83.00[05]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS
7
6
8
1
2
3
5
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5095327

RIM

W10 x 24

2шт.

2

10790524

NUT,M16 x 1.5

16шт.

3

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

4

5095328

WHEEL DISC

W10 x 42

2шт.

5

5096021

SCREW

M16 x 1.5 x 47

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

8

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
