(83.00[04]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH FARMALL 95 (83.00[04]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

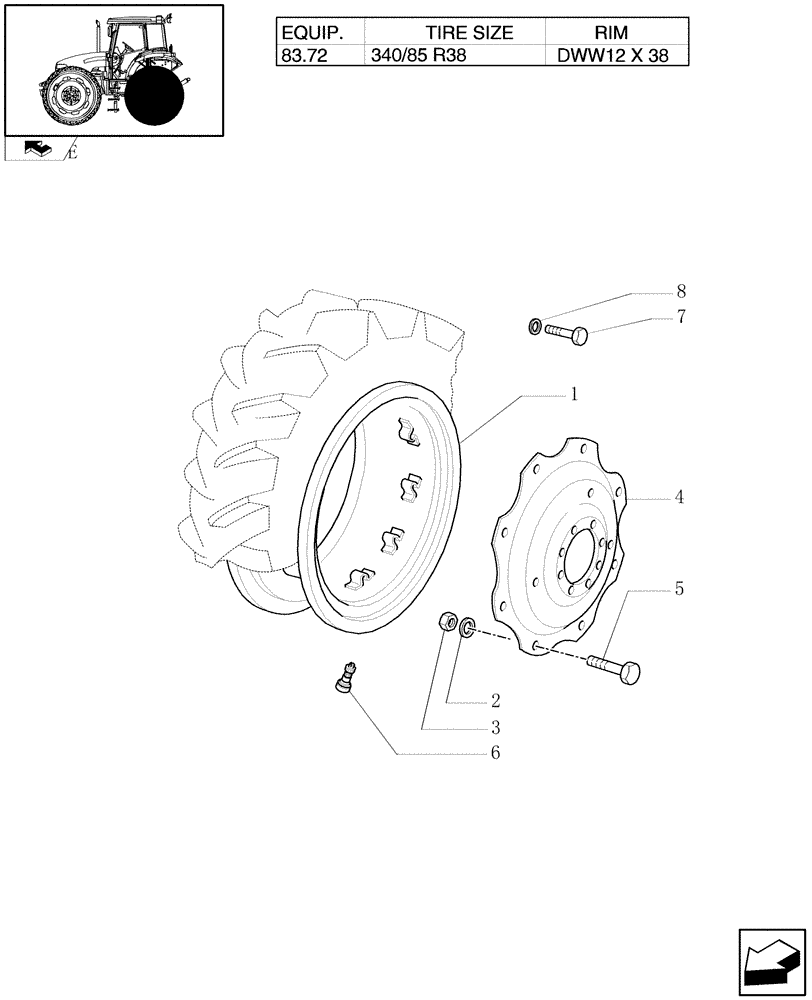

Схема запчастей Case IH FARMALL 95 - (83.00[04]) - DRIVE WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS
8
2
home
3
6
1
4
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12 x 38

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

47128171

WHEEL DISC,818.4mm Dia, 8 Bolts , Case IH Silver

D=818

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

8

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
