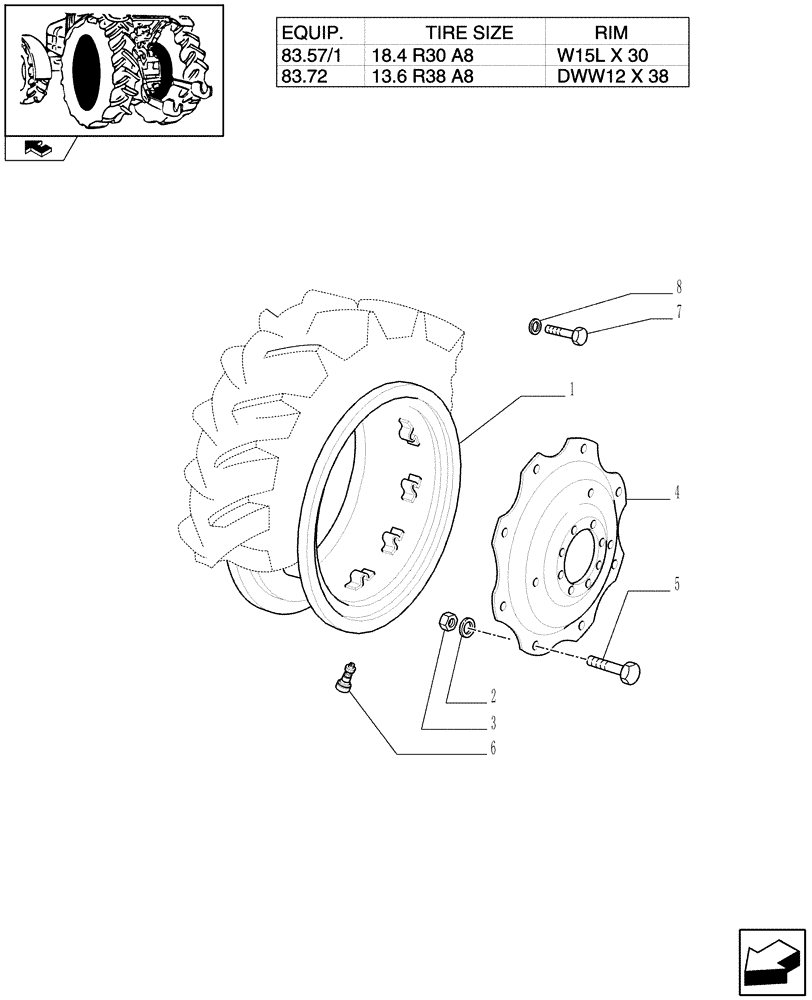

Запчасти Case IH FARMALL 95 (83.00[01]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

5094075

RIM

W15Lx30

2шт.

Ankara Plant

1шт.

1

87317476

RIM,W15Lx30, 8 Bolts, Case IH Silver

W15Lx30

2шт.

Ankara Plant

1шт.

1

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12x38

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6x33x3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

5091754

WHEEL DISC

D=664.9

2шт.

Ankara Plant

1шт.

4

87317478

WHEEL DISC,664.9mm Dia, 8 Bolts , Case IH Silver

D=664,9

2шт.

Jesi Plant

1шт.

4

47128171

WHEEL DISC,818.4mm Dia, 8 Bolts , Case IH Silver

D=818.4

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

8

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.
