(82.00[03]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH FARMALL 95 (82.00[03]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

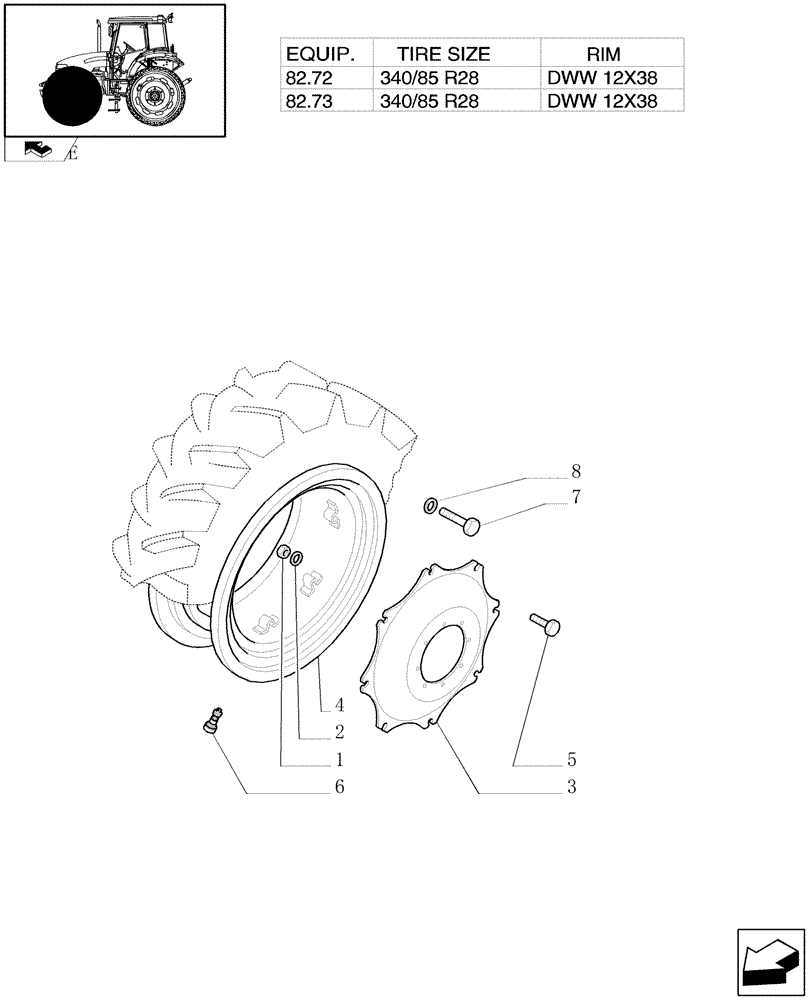

Схема запчастей Case IH FARMALL 95 - (82.00[03]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS
3
1
6
5
8
7
2
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10790524

NUT,M16 x 1.5

16шт.

2

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 3.5

16шт.

3

5094192

WHEEL DISC

100MM

2шт.

4

5094190

RIM

DWW12 x 38

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.
