(81.00[02]) - 2WD FRONT WHEELS - FOR HIGH CLERANCE VERSION

Запчасти Case IH FARMALL 95 (81.00[02]) - 2WD FRONT WHEELS - FOR HIGH CLERANCE VERSION (11) - WHEELS/TRACKS

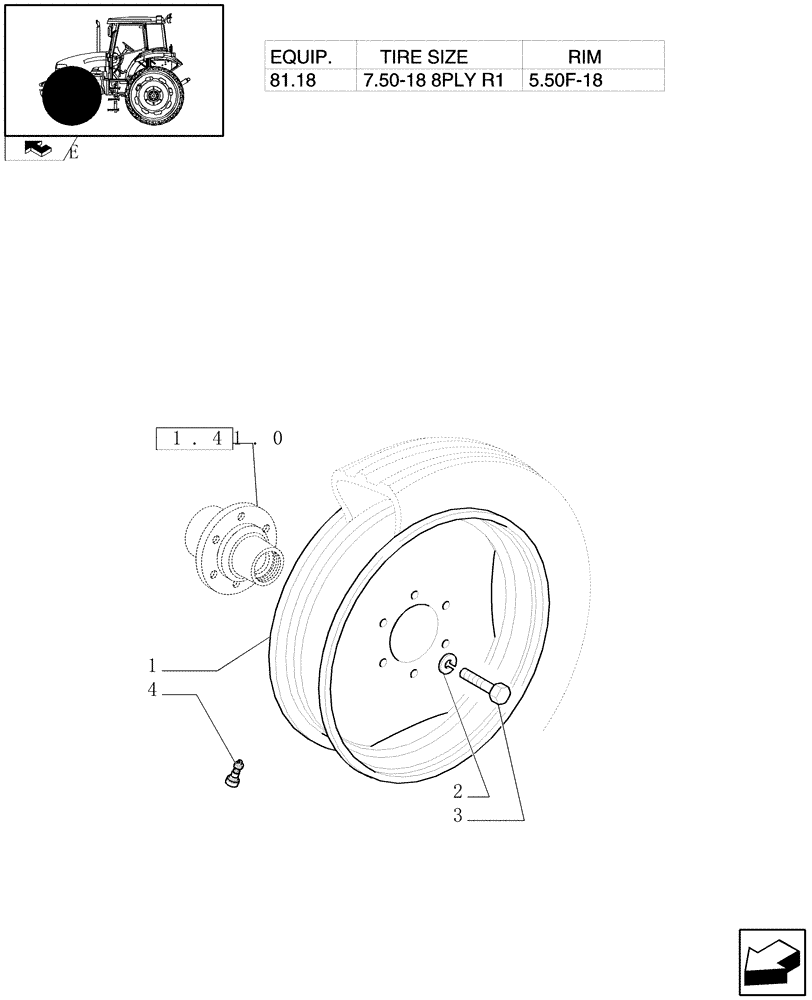

Схема запчастей Case IH FARMALL 95 - (81.00[02]) - 2WD FRONT WHEELS - FOR HIGH CLERANCE VERSION (11) - WHEELS/TRACKS
1.41.0
3
4
1
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091734

RIM

5.50F - 18

2шт.

Ankara Plant

1шт.

2

15983821

SCREW,Hex, M18 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

3

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

12шт.

4

87323751

PNEUMATIC VALVE

2шт.

Выбрано товаров: 5
