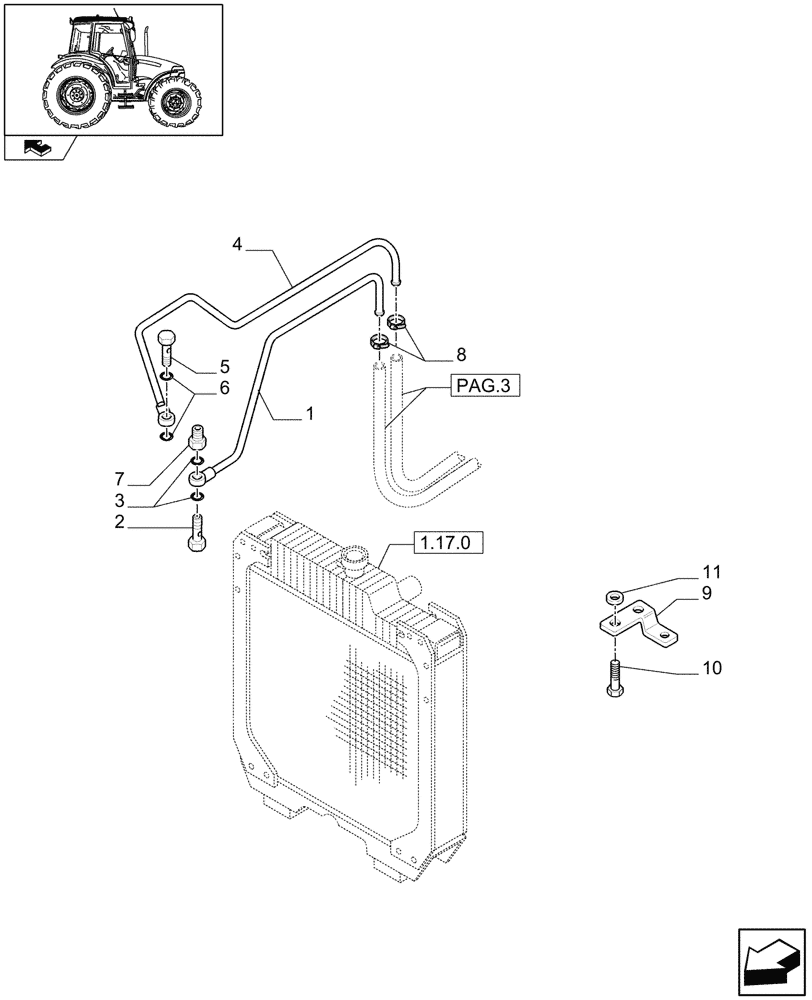

Запчасти Case IH FARMALL 95 (1.92.94[04A]) - CAB - HEATING SYSTEM - D6060 (10) - OPERATORS PLATFORM/CAB

1

87483513

PIPE

Cold

1шт.

2

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18

1шт.

3

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

4

87483511

PIPE

Hot

1шт.

5

5112983

BANJO BOLT,1/2" GAS x 36mm L

1шт.

6

44019496

SEAL,21.2mm ID x 26mm OD x 2mm Thk

21.2x26x2

2шт.

7

87671638

FITTING

1шт.

8

5097835

COLLAR

D=10-16

2шт.

8

87557209

CLAMP,16mm - 27mm

D=16-27

2шт.

9

87484030

SUPPORT

1шт.

10

11115321

SCREW,Hex, M14 x 25mm, Cl 8.8, Full Thd

M14 x 25, 8.8

2шт.

10

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

11

12601674

WAVE WASHER,Wave, M15

2шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.
