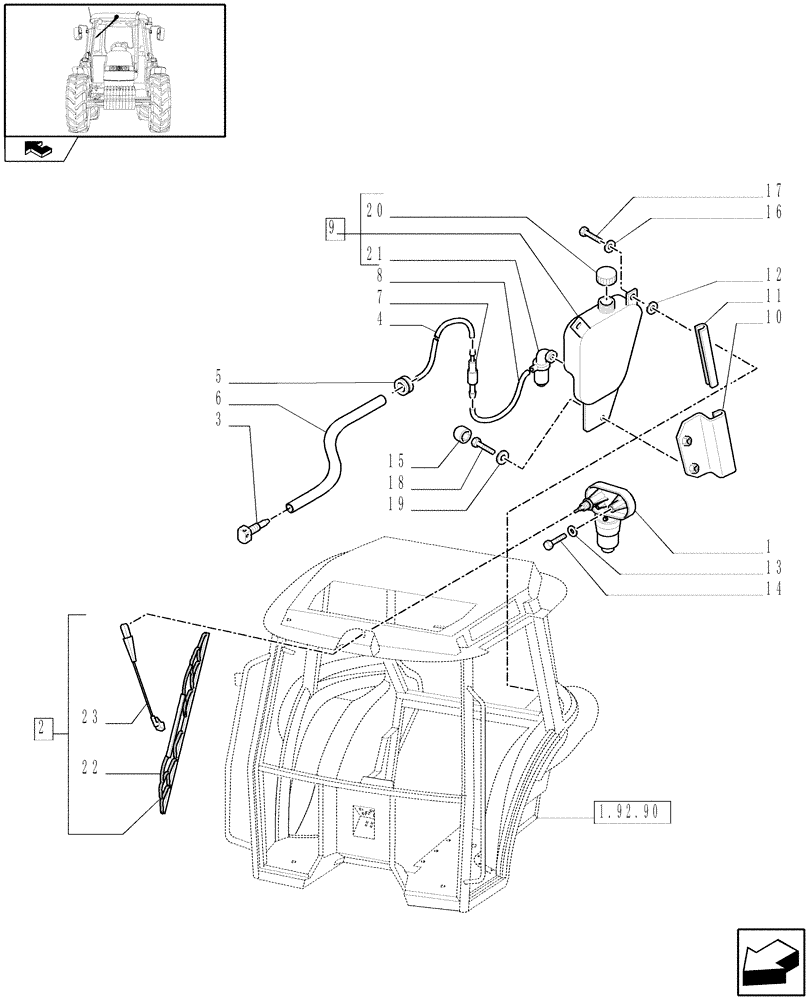

Запчасти Case IH FARMALL 95 (1.92.91) - FRONT WINDSHIELD WIPER (10) - OPERATORS PLATFORM/CAB

1

5092906

WIPER MOTOR

, Serial Range: -C5932

1шт.

1

87474388

WIPER MOTOR

, Start Serial: D5932

1шт.

2

5092905

WIPER ARM

ASSY

1шт.

3

5092907

NOZZLE

1шт.

4

5092908

TUBE

1шт.

5

5092913

GROMMET

1шт.

6

5094134

HOSE,25mm ID x 165mm L

2шт.

7

5092910

FITTING

1шт.

8

5092909

HOSE,4mm ID x 200mm L

1шт.

9

5096077

RESERVOIR, WINDSHIEL

Single Outlet

1шт.

10

5094175

SUPPORT

1шт.

11

5094138

RUBBER SEAL,171mm L

1шт.

12

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

2шт.

13

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

14

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

15

5089481

CAP,17mm OD

2шт.

16

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

2шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

20

87302624

CAP

1шт.

21

87309569

PUMP

1шт.

22

87754206

WIPER BLADE

1шт.

23

87754207

WIPER ARM

1шт.
