(1.92.9[01]) - ROTARY BEACON - W/CAB (VAR.335755)

Запчасти Case IH FARMALL 95 (1.92.9[01]) - ROTARY BEACON - W/CAB (VAR.335755) (10) - OPERATORS PLATFORM/CAB

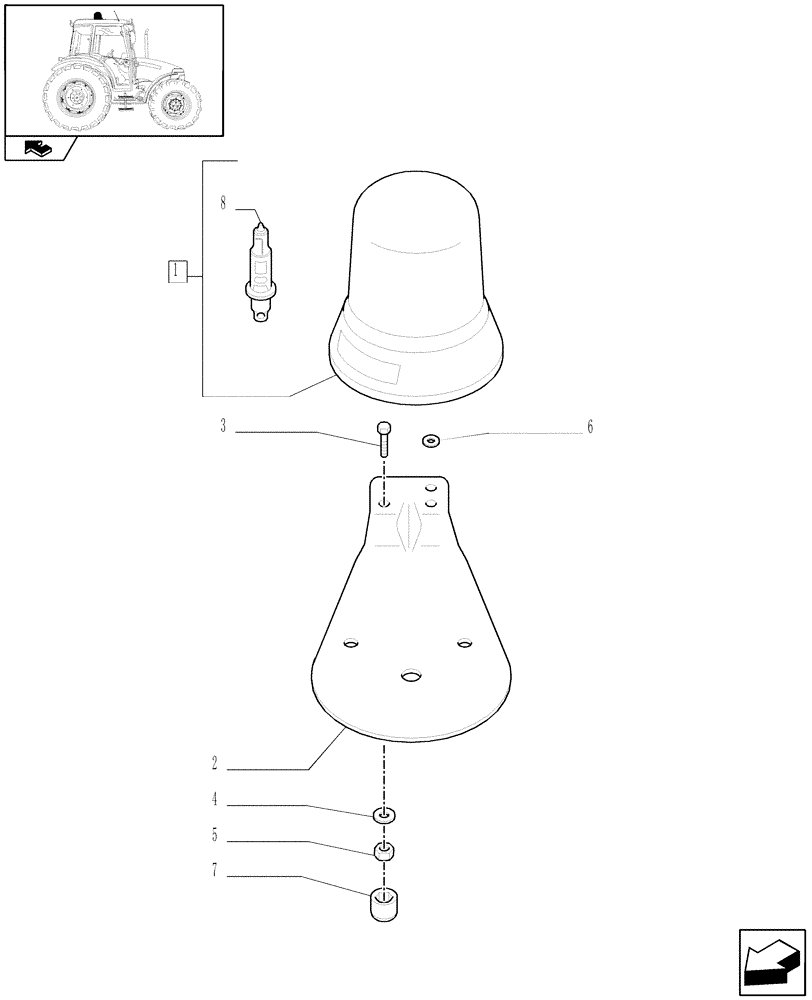

Схема запчастей Case IH FARMALL 95 - (1.92.9[01]) - ROTARY BEACON - W/CAB (VAR.335755) (10) - OPERATORS PLATFORM/CAB
6
home
4
3
2
7
5
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5092364

BEACON,12V, 55W, Amber

1шт.

2

5089437

SUPPORT

1шт.

3

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

6

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

7

5089481

CAP,17mm OD

3шт.

8

86616248

BULB,H1, 12V, 55W

1шт.
