Запчасти Case IH FARMALL 95 (1.92.88[01]) - COVERINGS - W/CAB (10) - OPERATORS PLATFORM/CAB

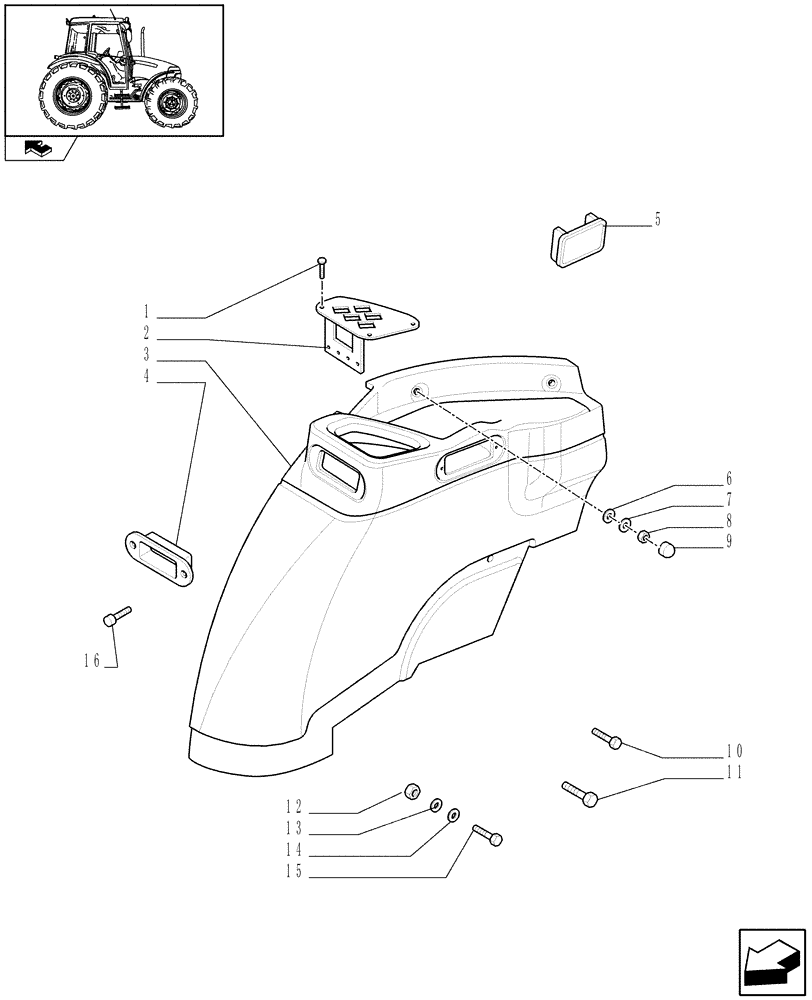

Схема запчастей Case IH FARMALL 95 - (1.92.88[01]) - COVERINGS - W/CAB (10) - OPERATORS PLATFORM/CAB
10
6
13
15
1
11
16
14
5
4
9
2
3
12
home
8
7

Артикул

Название

Примечание

Количество

1

15688501

SELF-TAP SCREW,Pan Hd, M10 x 22mm

5шт.

2

5097865

SUPPORT

1шт.

3

5097866

LINING

RH

1шт.

4

5097863

SUPPORT

1шт.

5

5166218

PLUG,Switch

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

5089481

CAP,17mm OD

1шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

13

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

3шт.

14

10571579

LOCK WASHER,M6

3шт.

15

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

16

15931411

SELF-TAP SCREW,Self Tap, Pan, M4 x 1.4 x 25mm

2шт.

Выбрано товаров: 16
