(1.92.87/05) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH FARMALL 95 (1.92.87/05) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION (10) - OPERATORS PLATFORM/CAB

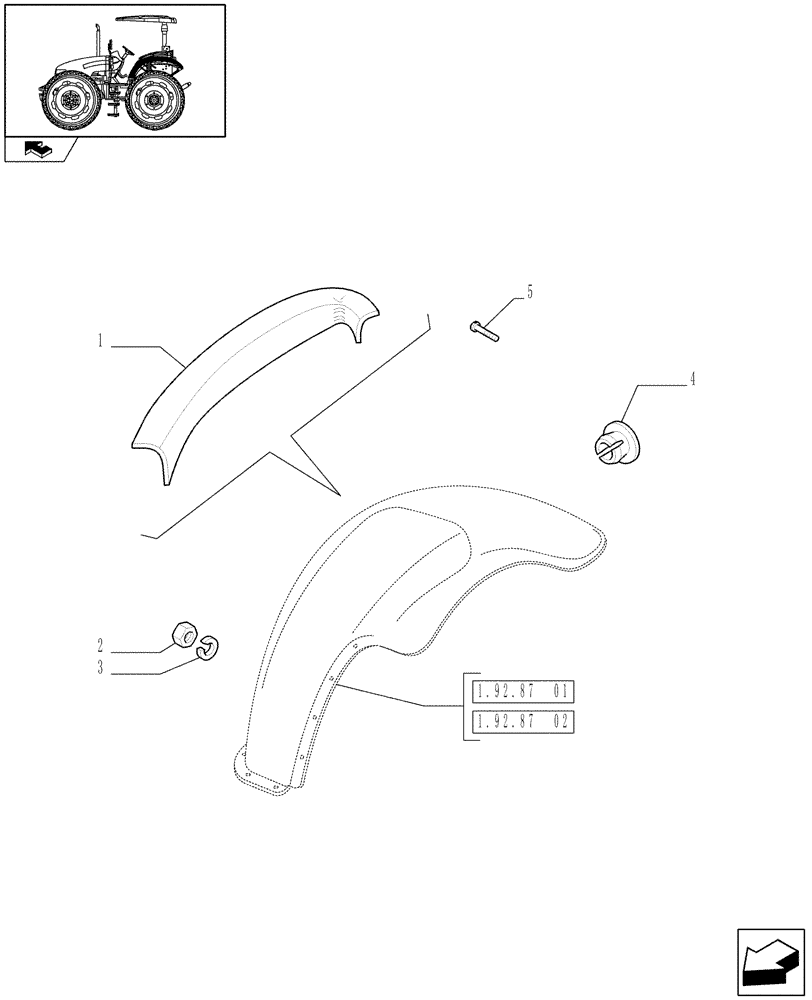

Схема запчастей Case IH FARMALL 95 - (1.92.87/05) - MUDGUARDS AND FOOTBOARDS - FOR HIGH CLEARANCE VERSION (10) - OPERATORS PLATFORM/CAB
3
5
1
home
2
1.92.87 02
4
1.92.87 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5092828

COVER

RH

1шт.

1

5092829

COVER

LH

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

4

5093850

PLUG,9mm OD

D=9

10шт.

5

13299117

SCREW

6шт.
