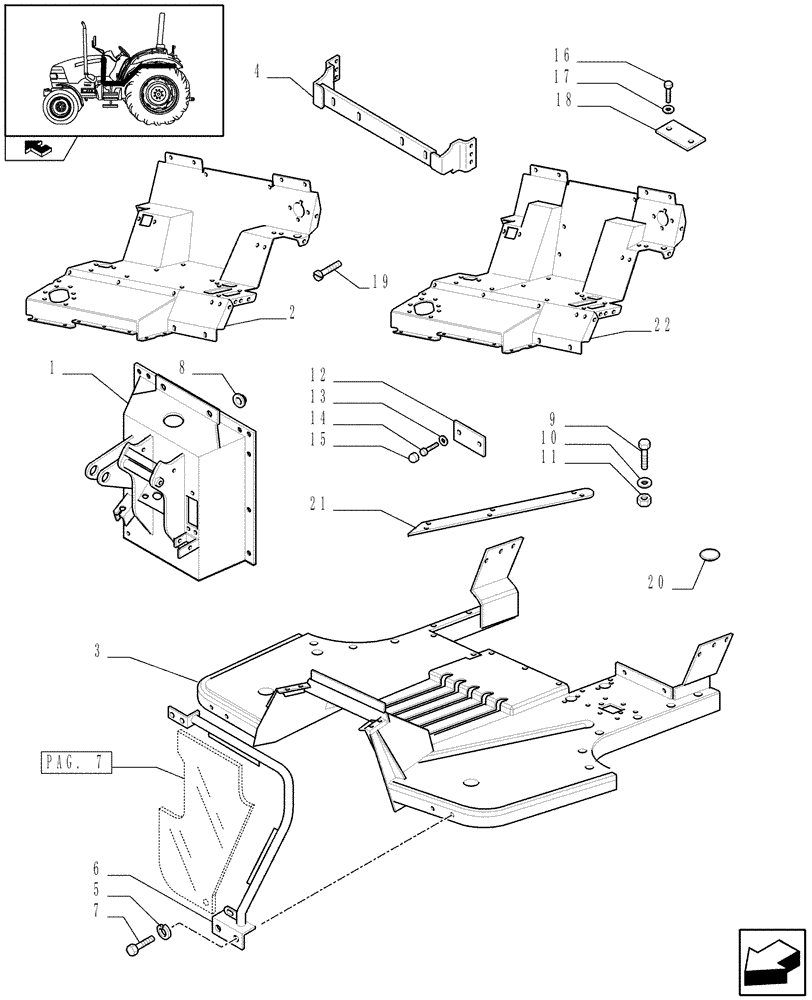

Запчасти Case IH FARMALL 95 (1.92.87[04A]) - MUDGUARDS AND FOOTBOARDS - L/CAB - D6752 (10) - OPERATORS PLATFORM/CAB

1

84404376

GUARD

1шт.

Power Shuttle e Servo PTO for Mechanical Differential Lock, VAR.330120-331120

1шт.

1

84251708

GUARD

1шт.

2

84251103

CAB FLOOR

1шт.

3

84251349

CAB FLOOR

1шт.

4

5091865

SUPPORT

1шт.

4

87594497

SUPPORT

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

33шт.

6

87725193

SUPPORT

LH

1шт.

6

87725192

SUPPORT

RH

1шт.

7

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

23шт.

8

87679075

BUSHING,12.1mm ID x 26mm OD x 6mm L

1шт.

9

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

10

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

5092169

COVER

1шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

14

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

15

5089481

CAP,17mm OD

2шт.

16

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

17

12035670

LOCK WASHER

2шт.

18

87392979

PLATE

1шт.

With Single Lever PTO, VAR.335250

1шт.

19

13299117

SCREW

6шт.

20

84415630

PLUG

1шт.

21

84251337

COVER

1шт.

22

87617233

PLATE

1шт.

Automatic Pick Up Hitch with Swinging Drawbar and Hook, Mirror and less Protection, VAR.335929

1шт.
